Belden 8334 0601000 RS-232 Cable, 4 Pair 24 AWG, Foil + Braid Shield, PVC Jacket, CMG, 1,000', Chrome
8334 0601000
|7B-833406010
Shop all Belden
Belden 8334 0601000 RS-232 Cable, 4 Pair 24 AWG, Foil + Braid Shield, PVC Jacket, CMG, 1,000', Chrome
8334 0601000 | 7B-833406010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

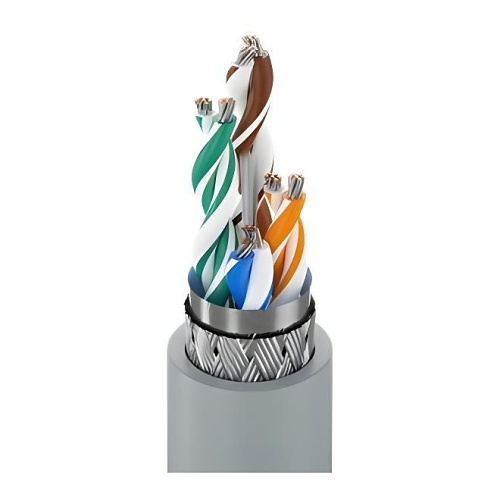

Computer EIA RS-232 Cable, 4-Pair, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.
Main Features
- RS-232 compliant for reliable data transmission
- 4-Pair, 24 AWG stranded tinned copper conductors
- Semi-rigid PVC insulation for durability
- Overall Beldfoil shield with 100% coverage
- 65% coverage tinned copper braid shield
- PVC jacket for added protection
General Information
Name: Belden 8334 0601000 RS-232 Cable, 4 Pair 24 AWG, Foil + Braid Shield, PVC Jacket, CMG, 1,000', Chrome
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-833406010 Brand Name Belden Manufacturer Part Number 8334 0601000 Packaged Quantity 305
American Wire Gauge 24AWG Application/Usage ...); low voltage digital control (24v, …); Line Level Audio; Panel Wiring, 0-10v, RS-232 Extended Distance Applications; Computer Communications; Low Voltage Analog Signals (4-20ma Conductor Count 8 Conductor Material Tinned Copper Fiber Category OM3 Jacket Material PVC Material PVC, Tinned Copper Number of Conductors 8 Number of Pairs 4 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -30-80°C
Cable Length 1000' Color Chrome Insulation Material PVC Package Type Reel
Length 1000'
Country of Origin US Environmental Certification China RoHS, cUL, UL Environmentally Friendly Yes Indoor/Outdoor Indoor
