Belden 8412 010100 22/2 Stranded Microphone Cable Tinned Copper TC Braid, Cotton Serve, 100' (30.48m) Reel, Black
8412 010100
|7B-84120101M
Shop All Belden
Belden 8412 010100 22/2 Stranded Microphone Cable Tinned Copper TC Braid, Cotton Serve, 100' (30.48m) Reel, Black
8412 010100 | 7B-84120101M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

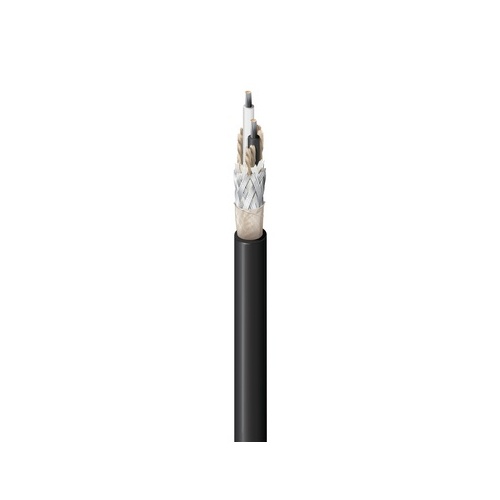

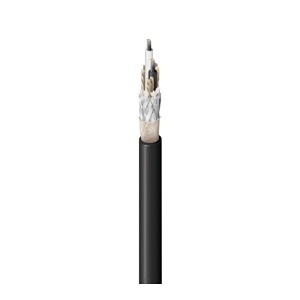

20 AWG stranded (26x34) high-conductivity TC conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, EPDM jacket.
Main Features
- Offers exceptional connection and upright compatibility with audio equipment
- Audio Device device supported for better reliance and optimal performance
General Information
Name: Belden 8412 010100 22/2 Stranded Microphone Cable Tinned Copper TC Braid, Cotton Serve, 100' (30.48m) Reel, Black
Category: Belden, Wire & Cable, Speaker Cables, Intercom Cables
UPC Code: 612825206354
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-84120101M Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 8412010100 Product Name 8412 Multi-Conductor - Two-Conductor, Low-Impedance Cable Product Type Audio Cable
American Wire Gauge 20AWG Application/Usage deployable microphone for studio or live performance; Balanced analog audio, Ruggedized Cable Type Tinned Copper Conductor Count 2 Conductor Material Tin-plated Copper Device Supported Audio Device Fiber Category OM3 Jacket Material EPDM Number of Conductors 2 Number of Pairs 1 Shielding Braid Solid or Stranded Stranded
Operating Temperature (T-T) -50-90°C
Cable Length 100' Color Black Insulation Material EPDM Package Type Reel
Limited Warranty 10-Year
Country of Origin US Environmental Certification China RoHS, EU RoHS, WEEE Environmentally Friendly Yes Indoor/Outdoor Indoor
