Belden 8451 008Z1000 1-Pair 22 AWG Audio and Instrumentation Cable, Beldfoil Shield, PVC Jacket, 1000', Gray
8451 008Z1000
|7B-8451008ZX
Shop All Belden
Belden 8451 008Z1000 1-Pair 22 AWG Audio and Instrumentation Cable, Beldfoil Shield, PVC Jacket, 1000', Gray
8451 008Z1000 | 7B-8451008ZX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

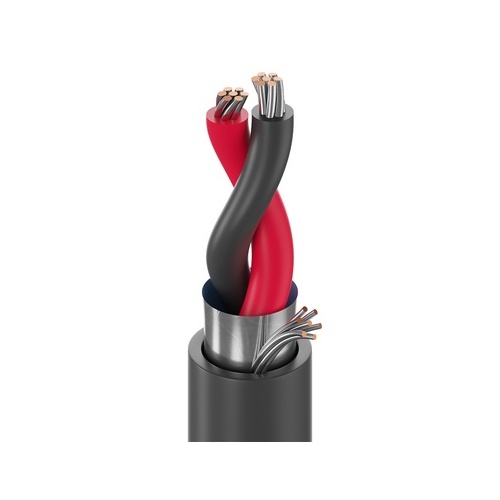

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
Specifications
ADI Part Number 7B-8451008ZX Brand Name Belden Manufacturer Part Number 8451 008Z1000 Packaged Quantity 305
American Wire Gauge 22AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring, 0-10v, for use with automatic stripping equipments; low voltage analog signals (4-20ma Cable Rating Riser Conductor Count 2 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 1000' Color Gray Insulation Material PE, PO, PP Package Type ReelTuff Box
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
