Belden 8451 0101000 Audio and Instrumentation, 1-Pair 22 AWG, TC, O/A Foil, CM, Black, 1000'
8451 0101000
|7B-8451100BK
Shop All Belden
Belden 8451 0101000 Audio and Instrumentation, 1-Pair 22 AWG, TC, O/A Foil, CM, Black, 1000'
8451 0101000 | 7B-8451100BK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

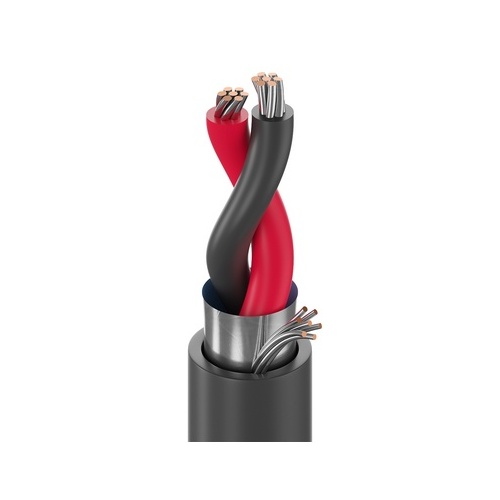

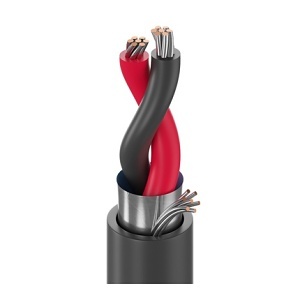

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
Main Features
- 1 Pair 22 AWG stranded (7x30) TC conductors
- Polypropylene insulation
- Paper wrap
- Twisted pair configuration
- Overall Beldfoil shield with 100% coverage
- 22 AWG stranded TC drain wire
- PVC jacket
- Color: Black
General Information
Name: Belden 8451 0101000 Audio and Instrumentation, 1-Pair 22 AWG, TC, O/A Foil, CM, Black, 1000'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825207726
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-8451100BK Brand Name Belden Manufacturer Part Number 8451 0101000 Packaged Quantity 305
American Wire Gauge 22AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring, 0-10V, for use with automatic stripping equipments; low voltage analog signals (4-20ma Cable Rating Riser Conductor Count 2 Conductor Material Tin-plated Copper Fiber Category OM3 Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 1000' Color Black Insulation Material PE, PO, PP Package Type Reel
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
