Belden 8451 010U500 1-Pair 22 AWG Audio and Instrumentation Cable, Beldfoil Shield, PVC Jacket, 500', Black
8451 010U500
|7B-84511U5
Shop All Belden
Belden 8451 010U500 1-Pair 22 AWG Audio and Instrumentation Cable, Beldfoil Shield, PVC Jacket, 500', Black
8451 010U500 | 7B-84511U5
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

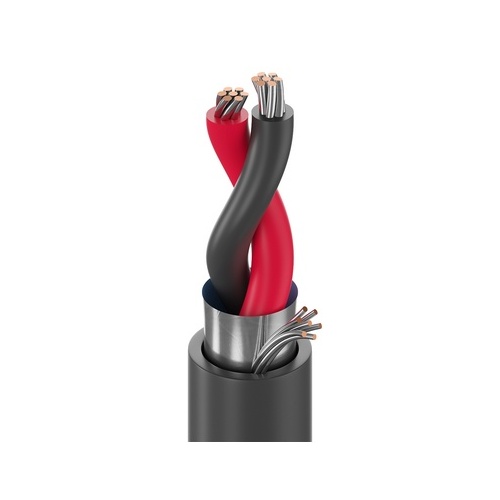

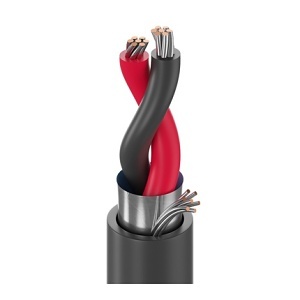

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
Main Features
- 1 Pair 22 AWG stranded (7x30) TC conductors
- Polypropylene insulation and paper wrap
- Twisted pair configuration
- Overall Beldfoil shield with 100% coverage
- 22 AWG stranded TC drain wire
- PVC jacket
- 500' length
- Black color
General Information
Name: Belden 8451 010U500 1-Pair 22 AWG Audio and Instrumentation Cable, Beldfoil Shield, PVC Jacket, 500', Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825207702
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-84511U5 Brand Name Belden Manufacturer Part Number 8451 010U500 Packaged Quantity 152
American Wire Gauge 22AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring, 0-10V, for use with automatic stripping equipments; low voltage analog signals (4-20ma Cable Rating Riser Conductor Count 2 Conductor Material Tin-plated Copper Impedance 75 ohms Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Connector Type SC/UPC
Cable Length 500' Color Black Insulation Material PE, PO, PP
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
