Belden 8457 060100 22/12 Conductor Electronic Cable, Stranded TC, CMG, 100' Reel, Chrome
8457 060100
|7B-845706010
Shop all Belden
Belden 8457 060100 22/12 Conductor Electronic Cable, Stranded TC, CMG, 100' Reel, Chrome
8457 060100 | 7B-845706010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

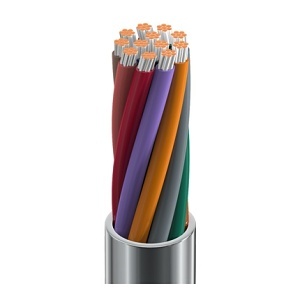

Electronic, 12-Conductor 22AWG (7x30) tinned copper, PVC insulation, PVC outer jacket, CMG.
Main Features
- Extra Low Capacitance for enhanced reach and data transmission
- Large range of design
- LSZH cables offer the same unsurpassed quality and reliability as our Classics series
- Belden offers innovative, EMI/RFI protective foil and braid designs, such as Beldfoil to reduce such interferences
- LSZH materials are non toxic as compared to PVC
- These products meets the REACH and RoHS compliance
- Enhanced resistance to fire with rating up to CPR B2ca as per EN50575
- Using biodegradable packaging material
General Information
Name: Belden 8457 060100 22/12 Conductor Electronic Cable, Stranded TC, CMG, 100' Reel, Chrome
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-845706010 Brand Name Belden Manufacturer Part Number 8457 060100 Packaged Quantity 30
American Wire Gauge 22AWG Application/Usage ...); low voltage control (24v, …); line level audio; voice communications; panel wiring, 0-10v, low voltage analog signals (4-20ma Cable Type Category 6 Conductor Count 12 Conductor Material Tinned Copper Jacket Material PVC Number of Conductors 12 Number of Pairs 4 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) -20-80°C
Cable Length 100' Color Chrome Insulation Material PVC Package Type Reel
Length 100'
Limited Warranty 10-Year
Country of Origin US Environmental Certification AWM 2576, China RoHS II (GB/T 26572-2011), CMG, CPR Euroclass - Eca, EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), FT4, IEC 60332-1-2, UKCA Mark, UL 1685 FT4 Loading Indoor/Outdoor Indoor
