Belden 8723SB 0101000 Audio & Instrumentation Cable, 2PR 22 AWG, Individually Shielded, LSZH Jacket, 1000', Black
8723SB 0101000
|7B-8723100BK
Shop All Belden
Belden 8723SB 0101000 Audio & Instrumentation Cable, 2PR 22 AWG, Individually Shielded, LSZH Jacket, 1000', Black
8723SB 0101000 | 7B-8723100BK
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

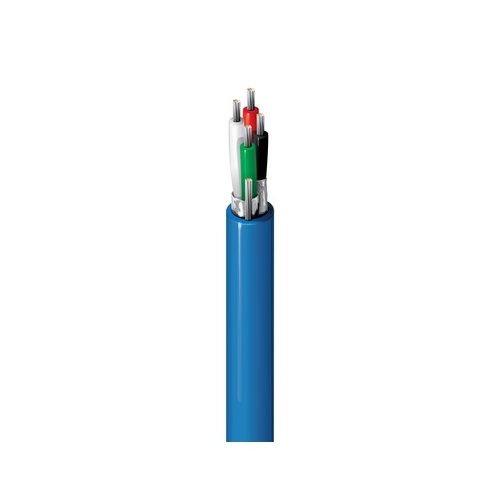

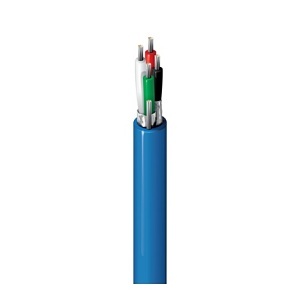

Audio and Instrumentation, 22AWG stranded (7 x 30) tinned copper conductors, twisted pairs, polypropylene insulation, individually shielded with 100% Beldfoil shield (100% coverage), 24AWG stranded tinned copper drain wire, LSZH jacket.
Main Features
- 22AWG stranded tinned copper conductors
- Twisted pairs for reduced interference
- Polypropylene insulation for durability
- Individually shielded with 100% Beldfoil
- 24AWG stranded tinned copper drain wire
- LSZH jacket for safety
General Information
Name: Belden 8723SB 0101000 Audio & Instrumentation Cable, 2PR 22 AWG, Individually Shielded, LSZH Jacket, 1000', Black
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825214571
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-8723100BK Brand Name Belden Manufacturer Part Number 8723SB 0101000 Packaged Quantity 305 Product Name Audio and Instrumentation, 2 Pair 22 AWG, TC, Individually Shielded, Shipboard Product Type Connector Cable
American Wire Gauge 22AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; panel wiring, 0-10V, shipboard applications; low voltage analog signals (4-20ma Cable Type Category 6a Conductor Count 4 Conductor Material Tin-plated Copper Jacket Material LSZH Number of Conductors 4 Number of Pairs 2 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 1000' Color Black Insulation Material PE, PO, PP Package Type Reel Weight 24lb
Limited Warranty 10-Year
Country of Origin MX Environmental Certification China RoHS, UL, WEEE Environmentally Friendly Yes Indoor/Outdoor Indoor, Outdoor
