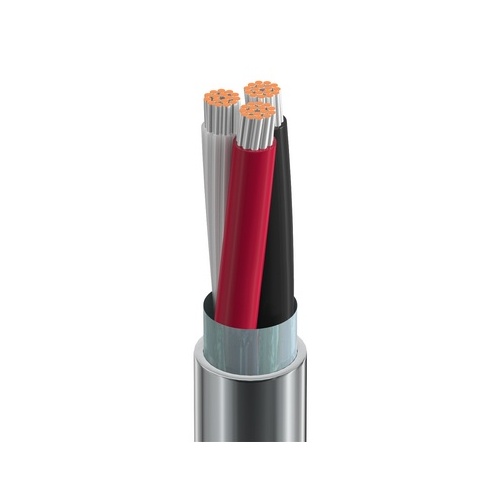

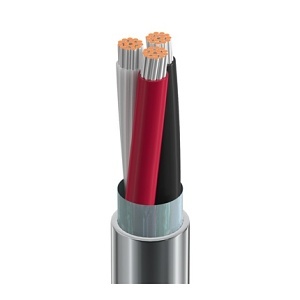

Belden 8770 060U1000 3-Conductor 18 AWG Multi-Conductor Cable, PE Insulation, Foil Shield, PVC Jacket, 1000'
8770 060U1000
|7B-8770060U1
Shop All Belden
Belden 8770 060U1000 3-Conductor 18 AWG Multi-Conductor Cable, PE Insulation, Foil Shield, PVC Jacket, 1000'
8770 060U1000 | 7B-8770060U1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Electronic, 3 Conductor 18AWG (16x30) Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM.
Main Features
- 3-conductor 18 AWG (16x30) tinned copper conductors
- PE insulation for each conductor
- Overall Beldfoil foil shield
- PVC outer jacket
- 1000' length
- CM rated for electronic applications
General Information
Name: Belden 8770 060U1000 3-Conductor 18 AWG Multi-Conductor Cable, PE Insulation, Foil Shield, PVC Jacket, 1000'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825215585
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-8770060U1 Brand Name Belden Manufacturer Part Number 8770 060U1000 Packaged Quantity 305
American Wire Gauge 18AWG Application/Usage ...); low voltage control (24v, …); line level audio; voice communications; panel wiring, 0-10V, low voltage analog signals (4-20ma Conductor Count 3 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 3 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -20-60°C
Cable Length 1000' Color Silver Insulation Material PE, PO, PP Package Type UnReel
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor
