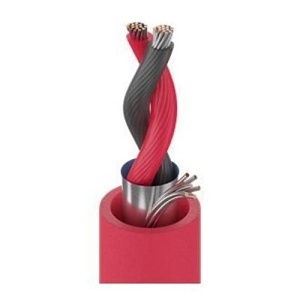

Belden 88760 002100 18AWG 1-Pair Twisted Multi-Conductor Cable, 100' (30.5m), Red
88760 002100
|7B-887600210
Shop All Belden
Belden 88760 002100 18AWG 1-Pair Twisted Multi-Conductor Cable, 100' (30.5m), Red
88760 002100 | 7B-887600210
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil shield (100% coverage), 20 AWG stranded TC drain wire, FEP jacket.
Specifications
ADI Part Number 7B-887600210 Brand Name Belden Manufacturer Part Number 88760 002100
American Wire Gauge 18AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; wet locations; panel wiring, 0-10v, extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma Cable Rating Plenum Conductor Count 2 Conductor Material Tin-plated Copper Jacket Material FEP Number of Conductors 2 Number of Pairs 1 Shielding Foil
Operating Temperature (T-T) -20-150°C
Color Red Insulation Material FEP
Installation Type Burial
Limited Warranty 10-Year
Indoor/Outdoor Indoor, Outdoor
