Belden 9451 008Z1000 22/2 Stranded Audio Cable, tinned copper pair, polypropylene insulation, Beldfoil shield, drain, Riser, PVC jacket, 1000' (304.8m) ReelTuff Box, Gray

Brand: Belden
ADI #:7B-9451008Z1 Model #: 9451 008Z1000  Name: Belden 9451 008Z1000 22/2 Stranded Audio Cable, tinned copper pair, polypropylene insulation, Beldfoil shield, drain, Riser, PVC jacket, 1000' (304.8m) ReelTuff Box, Gray
  • Enjoy the feast of songs with audio device compatibility
  • Features Bare Wire cable type to better acco mmodate your precise requirements with maximum productivity
  • Stranded feature for your convenience and ease of usage
Belden 9451 009Z1000 Audio Cable 22AWG TC, Shielded, Riser, 1000' (304.8m), White

Product Overview

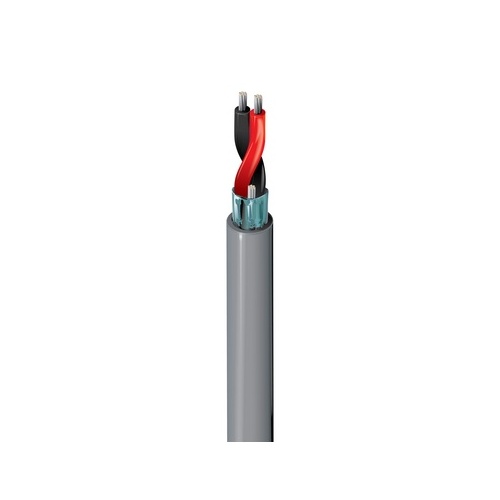

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil® shield, drain, Riser, PVC jacket.

General Information

Name : Belden 9451 008Z1000 22/2 Stranded Audio Cable, tinned copper pair, polypropylene insulation, Beldfoil shield, drain, Riser, PVC jacket, 1000' (304.8m) ReelTuff Box, Gray , Belden
Category : Non Plenum Audio Cables
UPC Code : 612825425182

Specifications

General Information

ADI Part Number : 7B-9451008Z1
Brand Name : Belden
Manufacturer : Belden CDT, Inc
Manufacturer Part Number : 9451 008Z1000
Product Name : Audio Cable, 1 Pair 22 AWG TC, Shielded, Riser
Product Type : Audio Cable

Technical Information

American Wire Gauge : 22AWG
Cable Listing : CMR
Cable Rating : Plenum|Riser
Cable Type : Bare Wire
Conductor Count : 1
Device Supported : Audio Device, Computer, Microphone
Jacket Material : Polyvinyl Chloride (PVC)
Number of Conductors : 2
Number of Pairs : 1
Shielding : Yes
Solid or Stranded : Stranded

Physical Characteristics

Cable Length : 1000'
Cable Length (mm) : 304800
Color : Gray
Insulation Material : PP
Package Type : Reel
Product Color : Gray
Product Material : Tinned Copper

Miscellaneous

Environmental Certification : China RoHS 2, EU WEEE, RoHS 2
Environmentally Friendly : Yes
Features : Bendable, Fire Resistant, Stranded
