Belden 9451 007Z1000 1-Pair 22 AWG Analog Audio Cable, Shielded, PVC Jacket, Violet, ReelTuff Box, 1000'
9451 007Z1000
|7B-94517Z1
Shop All Belden
Belden 9451 007Z1000 1-Pair 22 AWG Analog Audio Cable, Shielded, PVC Jacket, Violet, ReelTuff Box, 1000'
9451 007Z1000 | 7B-94517Z1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

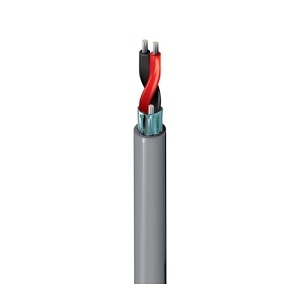

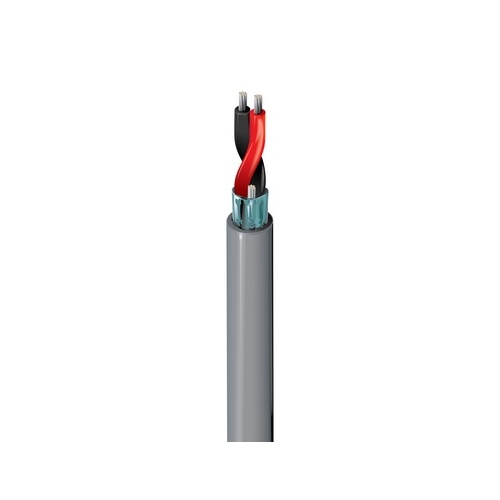

Audio Cable, 1 Pair 22 AWG stranded (7x30) tinned copper pair, polypropylene insulation, Beldfoil shield, drain, Riser, PVC jacket.
Main Features
- 1 pair 22 AWG stranded (7x30) tinned copper pair conductor
- Polypropylene insulation for electrical isolation
- Beldfoil shield with drain wire for noise reduction
- Riser-rated PVC jacket for fire resistance
- Shielded analog audio cable suitable for indoor use
- 1000-foot length on ReelTuff box for easy dispensing
- Violet color for easy identification
General Information
Name: Belden 9451 007Z1000 1-Pair 22 AWG Analog Audio Cable, Shielded, PVC Jacket, Violet, ReelTuff Box, 1000'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825425175
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-94517Z1 Application/Usage ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring, 0-10v, Automatic Stripping Equipment; Low Voltage analog Signals (4-20mA Brand Name Belden Country of Origin MX Manufacturer Part Number 9451 007Z1000 Package Type ReelTuff Box Packaged Quantity 100, 305
American Wire Gauge 22AWG Cable Rating Riser Conductor Count 2 Conductor Material Tinned Copper Number of Conductors 2 Number of Pairs 1 Shielding Yes Solid or Stranded Stranded
Operating Temperature (T-T) -20-75°C
Cable Length 1000.00' Color Purple Insulation Material PE, PO, PP Jacket Material PVC
Length 1000.00'
Limited Warranty 10-Year
Indoor/Outdoor Indoor
