Belden 9501 060U1000 1-Pair 24 AWG RS-232 Cable, Semi-Rigid PVC Insulation, Foil Shield, PVC Jacket, Chrome, 1000'
9501 060U1000
|7B-9501060U1
Shop All Belden
Belden 9501 060U1000 1-Pair 24 AWG RS-232 Cable, Semi-Rigid PVC Insulation, Foil Shield, PVC Jacket, Chrome, 1000'
9501 060U1000 | 7B-9501060U1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

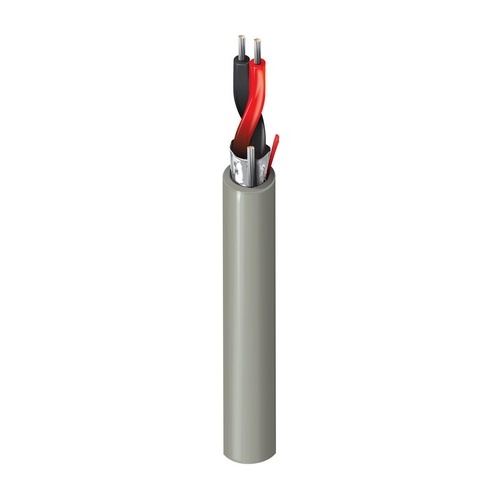

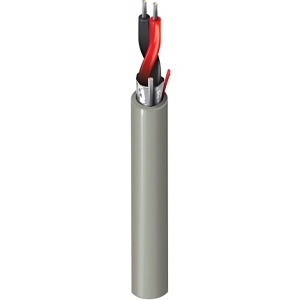

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, 1 twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Specifications
ADI Part Number 7B-9501060U1 Brand Name Belden Manufacturer Part Number 9501 060U1000 Packaged Quantity 305
American Wire Gauge 24AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; panel wiring, 0-10v, RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma Conductor Count 2 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 2 Number of Pairs 1 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -30-80°C
Cable Length 1000' Color Silver Insulation Material PVC Package Type UnReel
Country of Origin MX Indoor/Outdoor Indoor
