Belden 9513 060500 3-Pair 22 AWG Instrumentation Cable, PVC Insulation, Foil Shield, PVC Jacket, PLTC, Chrome, 500'
9513 060500
|7B-951306050
Shop All Belden
Belden 9513 060500 3-Pair 22 AWG Instrumentation Cable, PVC Insulation, Foil Shield, PVC Jacket, PLTC, Chrome, 500'
9513 060500 | 7B-951306050
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

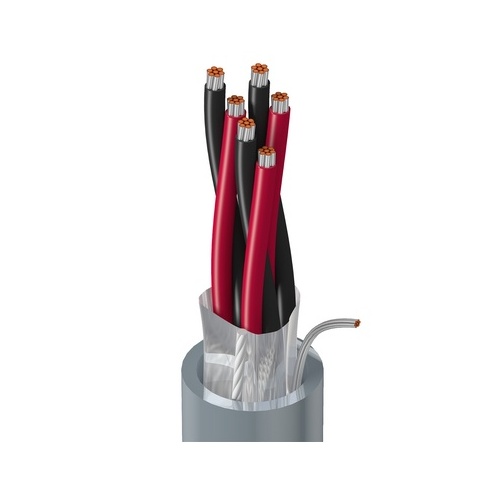

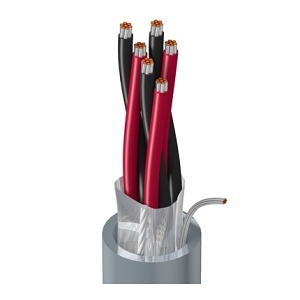

High Performance Instrumentation, 3 Pair 22AWG (7x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil Shield, PVC Outer Jacket, PLTC.
Main Features
- High Performance Instrumentation cable with 3 Pair 22 AWG (7x30) Tinned Copper conductors
- PVC Insulation with E2 Color Code
- Overall Beldfoil foil shield
- PVC Outer Jacket
- PLTC rated cable
- 500' length
- Chrome color
General Information
Name: Belden 9513 060500 3-Pair 22 AWG Instrumentation Cable, PVC Insulation, Foil Shield, PVC Jacket, PLTC, Chrome, 500'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825254720
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-951306050 Brand Name Belden Manufacturer Part Number 9513 060500 Packaged Quantity 152
American Wire Gauge 22AWG Application/Usage 0-10V, 4-20mA, Instrumentation, Positioners, Sensors, Valves Conductor Count 6 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 6 Number of Pairs 3 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -30-105°C
Cable Length 500' Color Silver Insulation Material PVC-FR
Voltage Rating 300V
Installation Type Burial
Limited Warranty 10-Year
Country of Origin MX Indoor/Outdoor Indoor, Outdoor
