Belden 9538 0601000 8-Conductor 24 AWG RS-232 Cable, Semi-Rigid PVC Insulation, Foil Shield, PVC Jacket, Chrome, 1000'
9538 0601000
|7B-953861
Shop All Belden
Belden 9538 0601000 8-Conductor 24 AWG RS-232 Cable, Semi-Rigid PVC Insulation, Foil Shield, PVC Jacket, Chrome, 1000'
9538 0601000 | 7B-953861
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

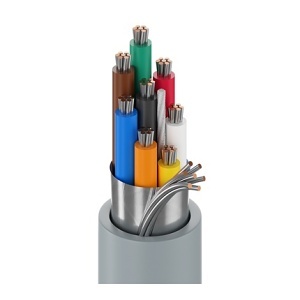

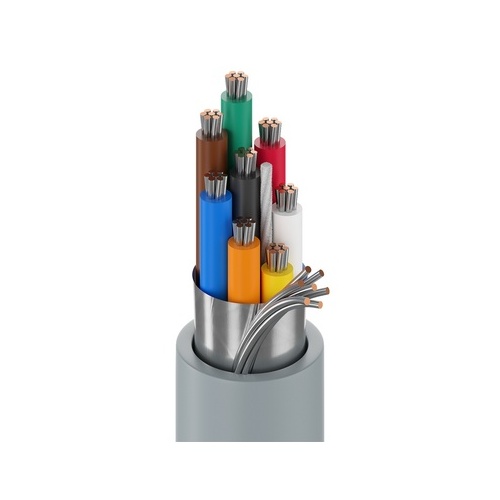

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Main Features
- 8-conductor 24 AWG stranded (7x32) tinned copper conductors
- Semi-rigid PVC insulation
- Overall Beldfoil shield with 100% coverage
- 24 AWG stranded tinned copper drain wire
- PVC jacket
- 1000' length
- Chrome color
General Information
Name: Belden 9538 0601000 8-Conductor 24 AWG RS-232 Cable, Semi-Rigid PVC Insulation, Foil Shield, PVC Jacket, Chrome, 1000'
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825255352
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-953861 Brand Name Belden Manufacturer Part Number 9538 0601000 Packaged Quantity 305
American Wire Gauge 24AWG Application/Usage ...); low voltage digital control (24v, …); line level audio; panel wiring, 0-10V, RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma Conductor Count 8 Conductor Material Tin-plated Copper Jacket Material PVC Number of Conductors 8 Shielding Foil Solid or Stranded Stranded
Operating Temperature (T-T) -30-80°C
Cable Length 1000' Color Silver Insulation Material PVC Package Type Reel
Country of Origin MX Indoor/Outdoor Indoor
