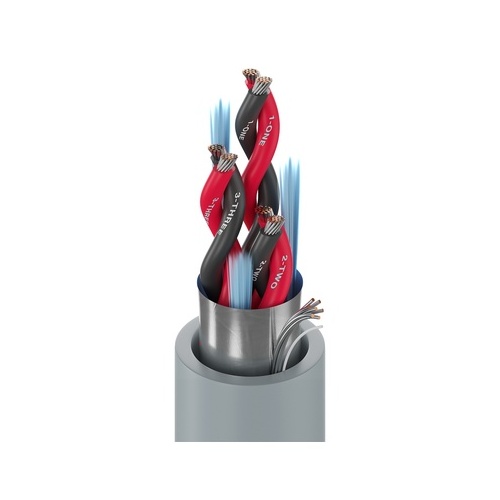

Belden 9553 0601000 18/3 Stranded TC High Performance Instrumentation Cable, PVC Outer Jacket, PLTC, Chrome
9553 0601000 | 7B-955306010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
High-performance instrumentation, 3 pairs of 18AWG (19x30) tinned copper, PVC insulation E2 color code, full Beldfoil shielding, outer PVC jacket, PLTC.
Main Features
- High-performance instrumentation cable
- 3 pairs of 18AWG (19x30) stranded tinned copper conductors
- PVC insulation with E2 color code
- Full Beldfoil shielding
- Outer PVC jacket
- Compliant with PLTC standards
General Information
Name: Belden 9553 0601000 18/3 Stranded TC High Performance Instrumentation Cable, PVC Outer Jacket, PLTC, Chrome
Category: Belden, Wire & Cable, Security & Access Control Cables, Multipair Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-955306010 Application/Usage 0-10v, 4-20mA, Instrumentation, Positioners, Sensors, Valves Brand Name Belden Country of Origin US Manufacturer Part Number 9553 0601000 Packaged Quantity 1000
American Wire Gauge 18AWG Cable Type Category 6 Conductor Count 6 Conductor Material Tinned Copper Number of Conductors 6 Number of Pairs 3 Shielding Yes Solid or Stranded Stranded
Certifications & Standards CA Prop 65, China RoHS II (GB/T 26572-2011), EU CE Mark, EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU (RoHS 2 amendment), WEEE
Operating Temperature (T-T) -30-105°C
Cable Length 1000.00' Color Silver Insulation Material PVC (Polyvinyl Chloride) Jacket Material PVC (Polyvinyl Chloride)
Voltage Rating 300V
Length 1000.00'
Limited Warranty 10-Year
Environmental Certification CE, RoHS 2, WEEE Environmentally Friendly Yes Indoor/Outdoor Indoor, Outdoor
