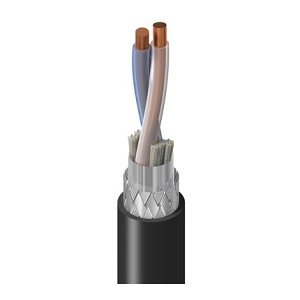

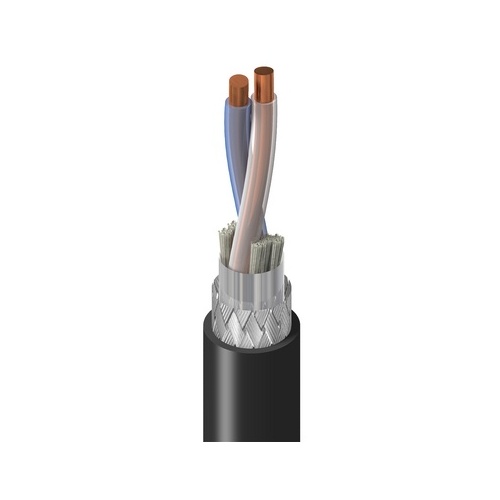

Belden 9860 0101000 2 16 Foamed Polyethylene Shielded Polyvinyl Chloride Cable
9860 0101000
|7B-986001010
Shop All Belden
Belden 9860 0101000 2 16 Foamed Polyethylene Shielded Polyvinyl Chloride Cable
9860 0101000 | 7B-986001010
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
General Information
Name: Belden 9860 0101000 2 16 Foamed Polyethylene Shielded Polyvinyl Chloride Cable
Category: Belden, Wire & Cable, Security & Access Control Cables, Multiconductor Cables
UPC Code: 612825259701
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-986001010 Brand Name Belden Manufacturer Part Number 9860 0101000 Packaged Quantity 1000
American Wire Gauge 16AWG Application/Usage Audio, data communication, etc., factory or process automation, harsh environment, IIoT, Video Conductor Count 2 Conductor Material Bare Copper Jacket Material PVC (Polyvinyl Chloride) Number of Conductors 2 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -20-60°C
Cable Length 1000' Color Black Insulation Material PE (Polyethylene), PO (Polyolefin), PP (Polypropylene) Package Type Reel/Spool
Voltage Rating 30V
Length 1000'
Limited Warranty 10-Year
Certifications & Standards CA Prop 65, China RoHS II (GB/T 26572-2011), EU CE Mark, EU Directive 2003/11/EC (BFR), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), EU Directive 2015/863/EU (RoHS 2 amendment), WEEE Country of Origin US
