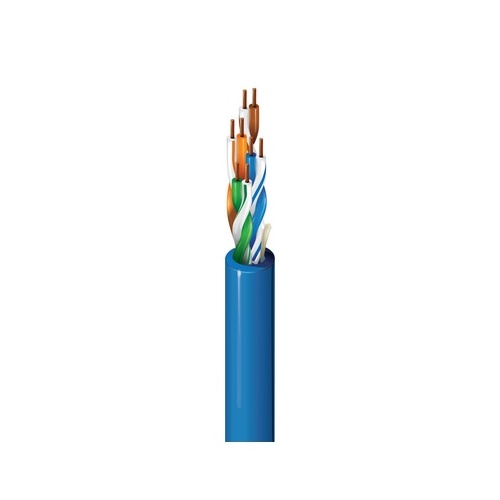

Belden D6UP 004U1000 CAT6 23/4 Premise Horizontal Plenum Cable, Solid BC, CMP, 1000'
D6UP 004U1000
|7B-D6UP004U1
Shop all Belden
Belden D6UP 004U1000 CAT6 23/4 Premise Horizontal Plenum Cable, Solid BC, CMP, 1000'
D6UP 004U1000 | 7B-D6UP004U1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Category 6 Premise Horizontal Cable (250MHz), 4-Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest PVC-LS Jacket.
Main Features
- Solid Bare Copper Conductor
- Polyolefin + Fluorinated Ethylene Propylene Insulation
- Indoor Plenum
General Information
Name: Belden D6UP 004U1000 CAT6 23/4 Premise Horizontal Plenum Cable, Solid BC, CMP, 1000'
Category: Belden, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 612825451402
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-D6UP004U1 Brand Name Belden Manufacturer Part Number D6UP 004U1000 Packaged Quantity 305
American Wire Gauge 23AWG Application/Usage Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE, PoE+, PoE++, Premise Horizontal Cable, Surveillance Cable Rating Plenum Cable Type Category 6a Conductor Count 8 Conductor Material Bare Copper Jacket Material PVC-LS Jacket Type Plenum Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid
Operating Temperature (T-T) -20-75°C Storage Temperature (T-T) -4-167°F
Cable Length 1000' Color Yellow Insulation Material FEP, PO
Length 1000'
Country of Origin MX Indoor/Outdoor Indoor
