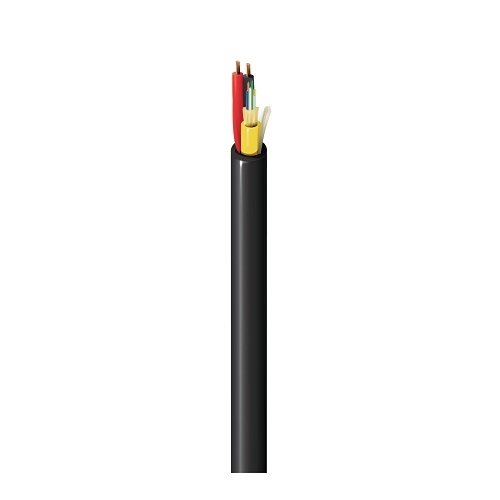

Belden HDSD0060218LJ HD Distribution Network Tight Buffered Cable, OS2 6 Fiber + 2 Copper #18
HDSD0060218LJ
|7B-HDD6218LJ
Shop All Belden
Belden HDSD0060218LJ HD Distribution Network Tight Buffered Cable, OS2 6 Fiber + 2 Copper #18
HDSD0060218LJ | 7B-HDD6218LJ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
FX Hybrid Indoor/Outdoor, OS2, Distribution, 6 Fibers, 02 x 18AWG, CMR-LS-OF, Sub-Unit 4.8mm (6F x 900UM), Black Jacket.
Main Features
- Hybrid Indoor/Outdoor Design
- OS2 Distribution with 6 Fibers
- Includes 02 x 18AWG
- CMR-LS-OF Rated
- Sub-Unit Diameter: 4.8mm
- Black Jacket
General Information
Name: Belden HDSD0060218LJ HD Distribution Network Tight Buffered Cable, OS2 6 Fiber + 2 Copper #18
Category: Belden, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-HDD6218LJ Brand Name Belden Manufacturer Part Number HDSD0060218LJ Product Name Indoor/Outdoor Hybrid Copper-Fiber Cable, OS2, 6 Distribution Fibers, #18-2c, CMR-OF Product Series FX Hybrid Product Type Copper-Fiber Cable
American Wire Gauge 18AWG Application/Usage Distributed Antenna Systems (DAS), Passive Optical Network (PON), Security (Cameras), Wireless Access Points (WAP) Cable Rating Outdoor Cable Type Hybrid Copper-Fiber Conductor Count 2 Conductor Material Tin-plated Copper Core/Cladding Diameter 8.2/125 ?m Fiber Category OS2 Fiber Count 6 Fiber Optic Mode Single-mode Jacket Material LSZH Material PVC Number of Conductors 2 Number of Pairs 1 Solid or Stranded Stranded
Operating Temperature (T-T) -40-70°C Storage Temperature (T-T) -40-70°C
Color Black Insulation Material PVC Weight 70lb
Installation Type Burial
Indoor/Outdoor Indoor, Outdoor
