Belden VSD2001-0.41 RG6 SDI Video Coax Cable, 18 AWG, Foil + Braid Shield, CMR, Black
VSD2001-0.41
|7B-VSD200104
Shop All Belden
Belden VSD2001-0.41 RG6 SDI Video Coax Cable, 18 AWG, Foil + Braid Shield, CMR, Black
VSD2001-0.41 | 7B-VSD200104
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

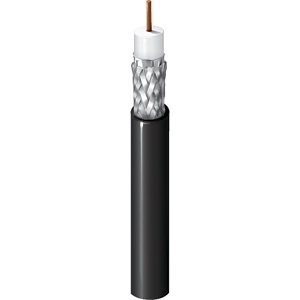

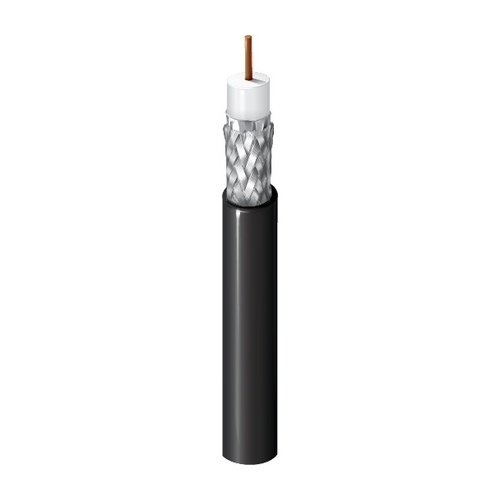

Gepco a Belden Brand, SDI Coax, RG-6, 18AWG solid bare copper conductor, gas-injected foam PE dielectric, aluminum foil shield plus 95% TC braid, CMR rated PVC jacket.
Main Features
- 18 AWG solid bare copper conductor
- Gas-injected foam PE dielectric
- Aluminum foil shield plus 95% TC braid
- CMR rated PVC jacket
- Suitable for HD/SDI applications
- Gepco a Belden Brand quality
General Information
Name: Belden VSD2001-0.41 RG6 SDI Video Coax Cable, 18 AWG, Foil + Braid Shield, CMR, Black
Category: Belden, Wire & Cable, Coaxial Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number 7B-VSD200104 Application/Usage Broadcast Mobil Trucks, Digital Video, Precision Video, Telecommunications Brand Name Belden Country of Origin MX Manufacturer Part Number VSD2001-0.41 Package Type Reel/Spool Packaged Quantity 305 Product Name Serial Digital Coax, RG6, 18 AWG Solid BC, Foil + Braid, CMR Product Type Cable
American Wire Gauge 18AWG Conductor Count 1 Conductor Material Bare Copper Fiber Category OM4 Impedance 75O Number of Conductors 1 Shielding Yes Solid or Stranded Solid
Operating Temperature (T-T) -30-75°C
Cable Length 1000.00' Color Black Insulation Material PE, PO, PP Jacket Material PVC Material Bare Copper, PE, PVC, TC Weight 41.00lb
Limited Warranty 10-Year
Environmental Certification CE, RoHS, WEEE Environmentally Friendly Yes Indoor/Outdoor Indoor, Outdoor
