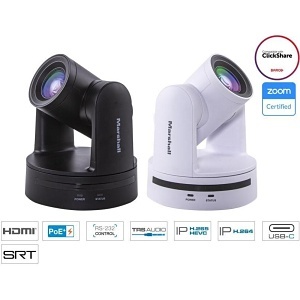

Marshall CV605U3W 5x HD60 USB-C/IP/HDMI PTZ Camera
CV605U3W
|99-CV605U3W
Shop All Marshall Electronics
Marshall CV605U3W 5x HD60 USB-C/IP/HDMI PTZ Camera
CV605U3W | 99-CV605U3W
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The CV605 5x optical zoom USB-C, HDMI and IP camera utilizes a professional grade 2MP sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920 x 1080p resolution at 60 fps. Multiple outputs include HDMI, USB.C and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of video conference, video streaming and professional A/V applications. CV605-U3 can be setup through one Ethernet (CAT) cable carrying video, audio, power (PoE), and control over IP. Also is easily dockable via OBS Studio, Zoom (certified) and as well as useful in other soft codecs.
Specifications
ADI Part Number 99-CV605U3W Brand Name Marshall Electronics Manufacturer Part Number CV605U3W
Effective Camera Resolution 2MP Maximum Aperture f/11 Minimum Focal Length 3.1mm Optical Zoom 5x Video Signal Format NTSC
Image Sensor Type CMOS
Maximum Operating Temperature 122°F Minimum Operating Temperature 14°F Operating Humidity 80%
Longest Shutter Speed 1/25 Second Minimum Illumination 0.5 lux Shortest Shutter Speed 1/10000 Second
Maximum Focal Length 15.5mm Minimum Aperture f/1.8
Color White Depth 5.8" Height 6.1" Width 5.7"
Input Voltage 110-220V AC
Limited Warranty 1-Year
Features ±135° Pan, ±30° Tilt Ranges, 1/2.8" 2.07MP HD CMOS Sensor, 255 Preset Positions, 10 by IR Remote, 5x Optical Zoom, 10x Digital Zoom, IP/IR Remote/RS-232 Control, Up to 1920 x 1080p60 Video Output, USB 3.1 Type-C, HDMI, LAN Output, Zoom Conference Software Certified
