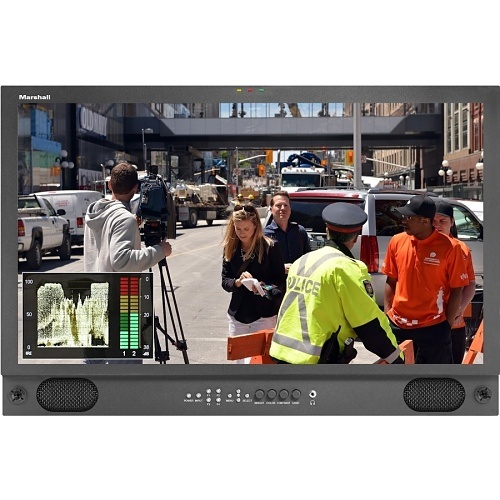

Image of 99-VLCD241MD

Marshall V-LCD241MD 24" Full HD Monitor with Waveform Overlay, Audio Bars, Loud Speakers and HDMI Loop-Out

V-LCD241MD|99-VLCD241MD

Marshall V-LCD241MD 24" Full HD Monitor with Waveform Overlay, Audio Bars, Loud Speakers and HDMI Loop-Out

V-LCD241MD|99-VLCD241MD
Key Features
  • Is long-lasting with reduced screen burning to ensure maximum efficiency
  • 24" viewable screen size provides a spectacular viewing experience
  • Furnishes captivating visuals with 300 Nit brightness levels
Key Features
  • Is long-lasting with reduced screen burning to ensure maximum efficiency
  • 24" viewable screen size provides a spectacular viewing experience
  • Furnishes captivating visuals with 300 Nit brightness levels

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Is long-lasting with reduced screen burning to ensure maximum efficiency
  • 24" viewable screen size provides a spectacular viewing experience
  • Furnishes captivating visuals with 300 Nit brightness levels
Marshall Electronics

Marshall V-LCD241MD 24" Full HD Monitor with Waveform Overlay, Audio Bars, Loud Speakers and HDMI Loop-Out

V-LCD241MD | 99-VLCD241MD

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

  • Full HD 1920 x 1080 display
  • HDMI input / output standard
  • Modular design. Allows addition of 3GSDI input
  • Waveform monitor at the push of a button
  • Audio meter bars overlay
  • Built-in speakers and headphone jack
  • Rugged 4-pin XLR power connector
  • Three color (Red, Yellow, Green) Tally LED's

Marshall V-LCD241MD monitor provides excellent features in a 24-inch size. Straight-forward design with the most-used features built-in including waveform and audio bar overlays, loud speakers, programmable function buttons, three-color tally lights. Use on desktops or utilize a standard VESA mount. The V-LCD241MD base unit comes with no pre-installed module, HDMI input only.

The V-LCD241MD-3G option includes the base unit with a pre-installed MD-3GE module providing an additional 3G/HD/SD-SDI input with loop-through.

DSLR RATIO ADJUSTMENT

Marshall's new DSLR RATIO ADJUSTMENT feature allows users to scale video that does not completely fill the monitor's screen when connected via HDMI in "Record" mode on certain Canon DSLRs. This new feature allows the user to scale their DSLR video output, fill the screen, and eliminate black pillar bars with a variety of options to choose from. The user has the option of choosing between NORMAL, 3:2, 16:9, and FULL SCREEN. The DSLR RATIO ADJUSTMENT feature can be programmed to one of the front panel's four-button presets for quick and easy access.

Waveform, Audio and Clip Guide displays

The monitor incorporates both a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the HDMI input (8 channels) or from the optional 3GSDI input (16 channels). Any pair of the available channels may be selected for both the display and the Headphone Output.

The Zebra function (Clip Guide) is used to visually filter data on the screen that is under a Lower Threshold or over an Upper Threshold. Data on either side of the filters can be displayed with a custom color.

False Color Filter

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Main Features

  • Is long-lasting with reduced screen burning to ensure maximum efficiency
  • 24" viewable screen size provides a spectacular viewing experience
  • Furnishes captivating visuals with 300 Nit brightness levels
  • 24" screen size with 1920x1080 resolution provides a native display of a Full HD video sources without any degradation due to down-sampling technologies
  • LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
  • 1920 x 1080 maximum resolution for stunning, lively result with optimal viewing usability
  • 16:9 widescreen resolution perfect for watching movies, playing video games and getting on with office work
  • HDMI interface allows you to connect to a variety of HD devices including gaming consoles, Blu-ray players, laptop PCs, digital cameras and many others for the ultimate true high-definition display
  • VESA mount compatibility offers a convenient and desired mounting solution
  • RotoMenu feature for maximum efficiency and convenience

General Information

Name: Marshall V-LCD241MD 24" Full HD Monitor with Waveform Overlay, Audio Bars, Loud Speakers and HDMI Loop-Out
Category: Marshall Electronics, Pro AV, Video Production
UPC Code: 801813183511
Country of Origin: United States. Country of origin is subject to change.
