Image of 9L-ATOMESW21
Shop all Atlona

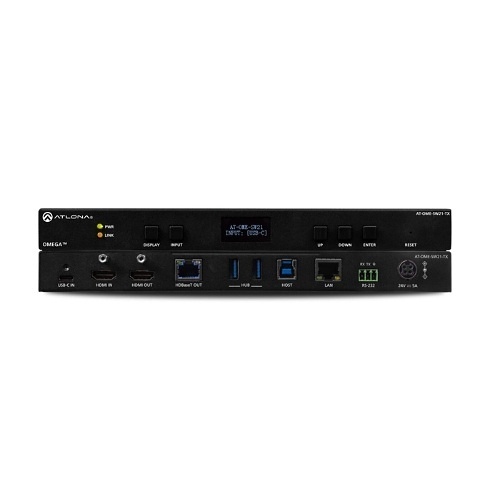

Atlona AT-OME-SW21-TX HDBaseT Transmitter with USB-C and HDMI Inputs Plus USB Hub

AT-OME-SW21-TX|9L-ATOMESW21
Shop all Atlona

Atlona AT-OME-SW21-TX HDBaseT Transmitter with USB-C and HDMI Inputs Plus USB Hub

AT-OME-SW21-TX|9L-ATOMESW21
Key Features
  • Two-input switcher and HDBaseTTM transmitter with USB-C and HDMI inputs
  • USB-C input for AV, USB data, and optional device charging (up to 60W)
  • Mirrored HDBaseT and HDMI outputs
Key Features
  • Two-input switcher and HDBaseTTM transmitter with USB-C and HDMI inputs
  • USB-C input for AV, USB data, and optional device charging (up to 60W)
  • Mirrored HDBaseT and HDMI outputs

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Two-input switcher and HDBaseTTM transmitter with USB-C and HDMI inputs
  • USB-C input for AV, USB data, and optional device charging (up to 60W)
  • Mirrored HDBaseT and HDMI outputs
Atlona

Atlona AT-OME-SW21-TX HDBaseT Transmitter with USB-C and HDMI Inputs Plus USB Hub

AT-OME-SW21-TX | 9L-ATOMESW21

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Atlona AT-OME-SW21-TX is a 2×1 switcher and HDBaseT transmitter with USB-C and HDMI inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB 2.0 over distances up to 330' (100m). Part of the Omega Series of integration products for modern AV communications and collaboration, the OME-SW21-TX features mirrored HDMI and HDBaseT outputs and is HDCP 2.3 compliant. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and interactive touch displays. The OME-SW21-TX includes a USB hub which supports USB 3.2 Gen 1 up to 5 Gbps, and USB 2.0 up to 480 Mbps for local devices and 120 Mbps over HDBaseT. Host switching is provided with USB type B and USB-C interfaces, plus two USB type A interfaces for peripherals as well as integrating with USB 3.2 Gen 1 extenders. Both inputs and the local HDMI output support 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally, 4K downscaling to 1080p is available for the HDMI output when connected to an HD sink. The OME-SW21-TX is ideal for use with Omega Series receivers, switchers with HDBaseT inputs, or even as a standalone AV system unit.

Main Features

  • Two-input switcher and HDBaseTTM transmitter with USB-C and HDMI inputs
  • USB-C input for AV, USB data, and optional device charging (up to 60W)
  • Mirrored HDBaseT and HDMI outputs
  • Extend AV, power, USB 2.0 data, control, and Ethernet up to 330' (100m)
  • Integrated USB 3.2 Gen 1 hub
  • Switch between USB host sources
  • Selectable 4K to 1080p downscaling for HDMI output
  • Local powering and USB-C charging available with optional power supply
  • Automatic input selection and automatic display control

General Information

Name: Atlona AT-OME-SW21-TX HDBaseT Transmitter with USB-C and HDMI Inputs Plus USB Hub
Category: Atlona, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code: 846352007706
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
