Atlona AT-PRO5-101-SC-RX 4K HDR SDVoE Receiver with Scaler for PRO5 Matrix Switcher

AT-PRO5-101-SC-RX|9L-PRO5101RX
Shop all Atlona

Atlona AT-PRO5-101-SC-RX 4K HDR SDVoE Receiver with Scaler for PRO5 Matrix Switcher

AT-PRO5-101-SC-RX|9L-PRO5101RX
Key Features
  • SDVoE Receiver for video, audio, Gigabit Ethernet, and bidirectional IR and RS-232 control signals
  • High-performance, SDVoE-based, point-to-point AV extension
  • SDVoE Extension input with copper or fiber optic connectivity
Key Features
  • SDVoE Receiver for video, audio, Gigabit Ethernet, and bidirectional IR and RS-232 control signals
  • High-performance, SDVoE-based, point-to-point AV extension
  • SDVoE Extension input with copper or fiber optic connectivity

Sign In for Dealer Pricing

Become an ADI Customer
Logitech
Key Features
  • SDVoE Receiver for video, audio, Gigabit Ethernet, and bidirectional IR and RS-232 control signals
  • High-performance, SDVoE-based, point-to-point AV extension
  • SDVoE Extension input with copper or fiber optic connectivity
Atlona

Atlona AT-PRO5-101-SC-RX 4K HDR SDVoE Receiver with Scaler for PRO5 Matrix Switcher

AT-PRO5-101-SC-RX | 9L-PRO5101RX

Please sign in to view pricing and availability and to add to cart.

Accessories

Power Distribution Units
Image of WT-WB2008PS
ADI # WT-WB2008PS
MODEL # WT-WB2008PS
WattBox
WattBox WB-200-8PS Surge Protector with Coax, Phone and Ethernet Protection, 8-Outlet, 4' Cord
WT-WB2008PS|WT-WB2008PS
Sign In for Dealer Pricing
Power Conditioners
Image of WT-WB700IP12
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WattBox
WattBox WB-700-IPV-12 IP Power Conditioner with OvrC Home, 12-Controlled Outlets
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

High-performance, dependable SDVoE extension. The next generation of 4K HDR signal extension. The PRO5 Series AT-OME-101-SC-RX opens a new frontier with SDVoE point-to-point extension. It receives AV, Gigabit Ethernet, and control over long-distance copper or fiber optic 10GbE connectivity from the AT-PRO5-MX810 matrix switcher. Made for universities, hospitality, courtrooms, and more. PRO5 is ideal for the many different AV applications requiring distribution between numerous sources and displays. It's a self-contained system with a matrix switcher and receivers, designed for straightforward integration. Enhance system performance with video processing. The AT-PRO5-101-SC-RX includes 4K scaling along with several other video processing features. Processing is also available for video wall displays in sports bars, student centers, or corporate lobbies.

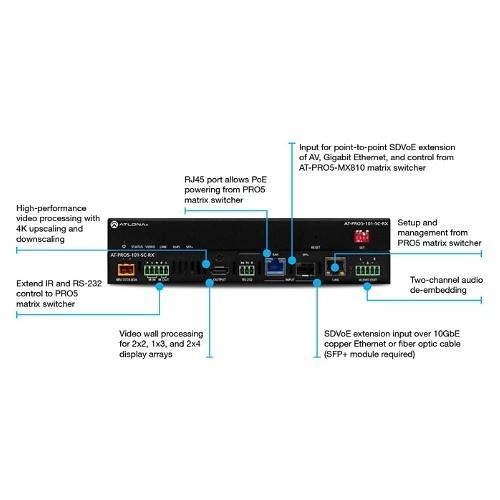

Main Features

  • SDVoE Receiver for video, audio, Gigabit Ethernet, and bidirectional IR and RS-232 control signals
  • High-performance, SDVoE-based, point-to-point AV extension
  • SDVoE Extension input with copper or fiber optic connectivity
  • 4K/UHD Capability at 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
  • Remotely powered by AT-PRO5-MX810 matrix switcher, or locally powered
  • High-performance 4K upscaling and downscaling
  • Video wall processing
  • Audio de-embedding

General Information

Name: Atlona AT-PRO5-101-SC-RX 4K HDR SDVoE Receiver with Scaler for PRO5 Matrix Switcher
Category: Atlona, Pro AV, Commercial Audio, Pro Receivers
UPC Code: 846352007720
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
Certification / Declaration
Additional Resources
