SoundTube IPD-SM52-EZ-WX-BK 5.25" IP-Addressable, Weather-Resistant, Dante-Enabled Speaker, Black
IPD-SM52-EZ-WX-BK
|9W-IPDSM52ZX
Shop All SoundTube
SoundTube IPD-SM52-EZ-WX-BK 5.25" IP-Addressable, Weather-Resistant, Dante-Enabled Speaker, Black
IPD-SM52-EZ-WX-BK | 9W-IPDSM52ZX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

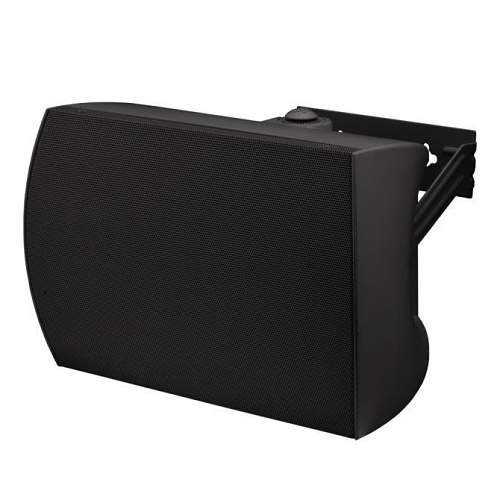

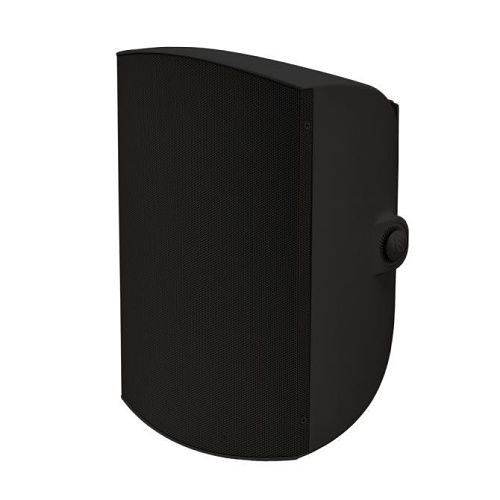

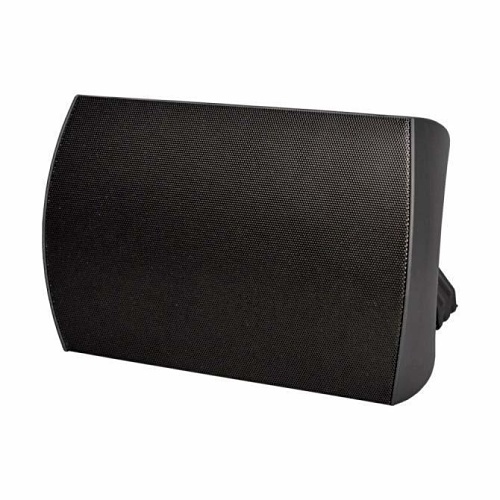

The IPD-SM52-EZ-WX is a Dante-enabled, weather resistant, digital end-point solution in a surface-mount loud speaker. This speaker includes a 40 W PoE amplifier for simplified installation and set up. Driver components consists of one 5.25 inch polypropylene woofer and one 1.0 inch soft dome tweeter in a ported enclosure. The included pre-mountable surface-mount bracket allows for quick and easy installation and the powder-coated aluminum grille keep the speaker looking good in most environments. The system is UL 60065 approved. IP-Rating; IP65. Included accessories- Safety cable, wall mount bracket, conduit connector and port plug. If used outdoors, port plugs must be installed to ensure protection from moisture.
Main Features
- 5.25" polypropylene woofer and 1.0" soft dome tweeter in ported enclosure
- 40 W PoE amplifier for simplified installation and setup
- Dante-enabled digital end-point solution
- Weather-resistant with IP65 rating
- UL 60065 approved system
- Pre-mountable surface-mount bracket included
- Powder-coated aluminum grille for durability
- Included safety cable, wall mount bracket, conduit connector, and port plug
General Information
Name: SoundTube IPD-SM52-EZ-WX-BK 5.25" IP-Addressable, Weather-Resistant, Dante-Enabled Speaker, Black
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-IPDSM52ZX Brand Name SoundTube Manufacturer Part Number IPD-SM52-EZ-WX-BK
Maximum Frequency Response 20Hz Minimum Frequency Response 80Hz
Color Black Width 7.50"
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes Features BroadBeam Ring delivers a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker, Fast connection of power, audio, and control functions via one CAT5 or CAT6 cable, Included accessories safety cable, wall-mount bracket, port plug, Allen wrench, and watertight strain-relief bushing, Provides report-back on any problems via SoundTube software, STNet IP-addressable, self-powered (PoE) speaker, Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications Package Contents Mounting hardware, Port Plug, Safety Cable
