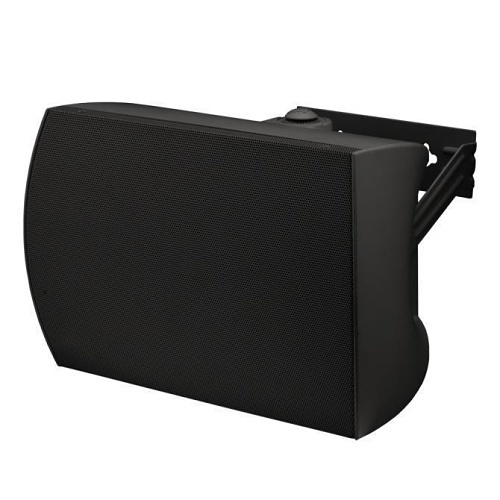

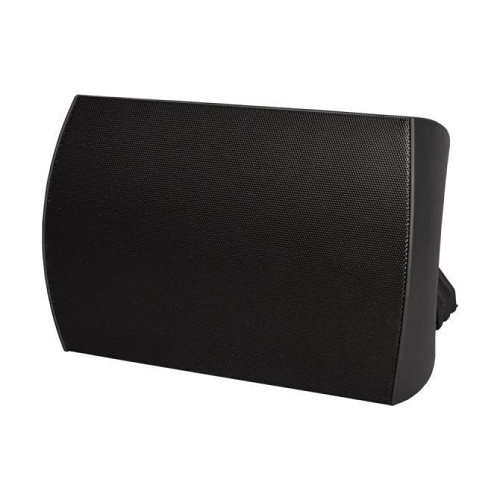

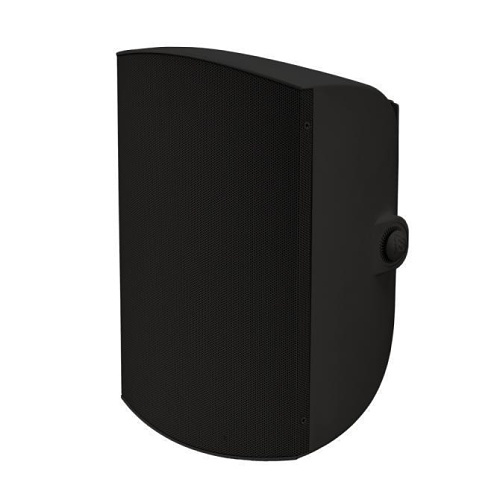

SoundTube SM82-EZ-II-WX-BK 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker, Black
SM82-EZ-II-WX-BK
|9W-SM82EZIXB
Shop All SoundTube
SoundTube SM82-EZ-II-WX-BK 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker, Black
SM82-EZ-II-WX-BK | 9W-SM82EZIXB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The SM82-EZ-II-WX is a cost-effective, high-efficiency surface-mount loudspeaker for distributed aplications or 8 ohms applications, featuring Weather Guard qualities that are built directly into the speaker. The SM82-EZ-II-WX incorporates a dedicated 8" polypropylene woofer and an offset 1" so' dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106.0 dB max. SPL). SM82-EZ-II-WX speakers use a 64W low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Mounting for the SM82-EZ-II-WX includes a proprietary, tool-free, low-profile Stealth bracket with a direct drive cam-wedge for stable and precise aiming up to 90 in one direction. IP-Rating - IP65.
Main Features
- The SM82-EZ-II-WX is a cost-conscious, weatherresistant, surface-mount loudspeaker
- BroadBeam Ring technology for midrange clarity and ultra-wide off-axis performance up to 10 kHz for maximum coverage area per speaker
- One 8" (203mm) polypropylene woofer and one 1" (25.4mm) so' dome tweeter
- IP65 rated (when included port plug is installed) for high dust and water-resistance
- 87 dB average sensitivity offers high output capabilities and reduced amplification costs
- Easy access,six-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position
- Aluminum grille with powder-coat finish
- Vertical and horizontal mounting offer precision aiming for indoor and outdoor applications
- UL 1480A approved
- High-quality black or white paint finish
General Information
Name: SoundTube SM82-EZ-II-WX-BK 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker, Black
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 748252172464
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number 9W-SM82EZIXB Brand Name SoundTube Manufacturer Part Number SM82-EZ-II-WX-BK Package Type Box Packaged Quantity 1
Maximum Frequency Response 20kHz Minimum Frequency Response 50Hz
Color Black Height 18.78" Width 11.65"
Power Source AC Power
Mount Type Surface Mount
Environmental Certification CE, RoHS, UL Environmentally Friendly Yes
