Product Overview
The AMX SVSI N2000 Series utilizes JPEG2000 compression for HD, cinema-grade video distribution on the LAN for applications when video quality is top priority. The NMX-DEC-N2222A Decoder is used to decode streams back to DVI or HDMI format for display on any monitor. Pair with the NMX-ENC-N2122A to encode and distribute sources of almost any format onto an existing IP network making that stream available to any endpoint in the facility. With the ability to direct any source stream to any display, large, low-cost switching and distribution systems are simple to deploy without proprietary cabling or dedicated switching hardware.
The NMX-DEC-N2222A includes Local Play, allowing users to upload and save 8 playlists that can contain up to 64 jpeg or PNG files. When a video stream is lost, the stored images will play, preventing blank displays.

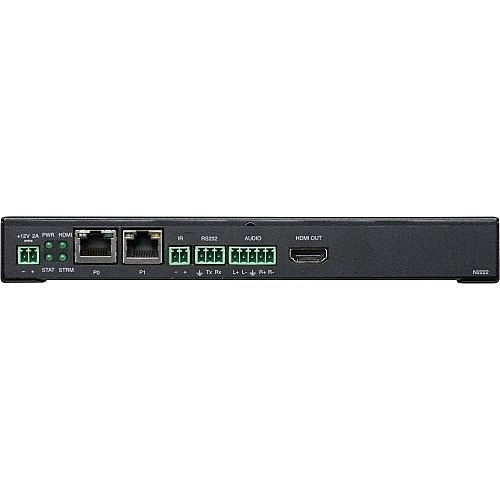

Includes IR, serial, balanced audio, AES67 support, and two network ports (one POE). Digital video output only.
COMMON APPLICATION
The NMX-DEC-N2222A is the perfect solution for matrix switching and distribution of HD, cinema-grade quality video over LAN. Common applications include enterprise, house of worship, entertainment, and stadiums.
FEATURES
- Input and Output Scaling - Video scaling at either input or output allows seamless switching from any source, at any resolution, to any display or projector, while preserving video fidelity
- Plug-n-Play - Auto-detect technology reduces installation and programming time
- Power Over Ethernet (POE) - PoE eliminates the need for power supply
- Infrared (IR) - Infrared emitter connection allows control of low-cost, IR-only display devices
- Onboard Control - All N-Series encoders and decoders have on-board, built-in control capability via events that can trigger any number of TCP/UDP commands to other IP controllable devices
- Unlimited Scalability
- Two RJ45 Ports - Decoder features two RJ45 network ports (one PoE)
- Stand Alone or Card - Available as a stand alone device, or card for use with NMX-ACC-N9206
General Information
Name : AMX FGN2222A-SA AMX NMX-DEC-N2222A N2000 Series Decoder with Ultra-Low Latency 1080p 60 Hz JPEG 2000 Digital Cinema Grade Video Over IP, HDMI, AES67 Support , AMX by Harman
Category : Pro HDMI Switchers
UPC Code :
Country of Origin : Mexico. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : AI-FGN2222AS
Brand Name : AMX
Manufacturer : Harman International Industries, Inc
Manufacturer Part Number : FGN2222A-SA
Product Line : AMX
Product Model : NMX-DEC-N2222A
Product Name : NMX-DEC-N2222A Video Decoder
Product Series : N2000
Product Type : Video Decoder
Weight (Approximate) (g) : 666.781
Technical Information
Functions : Audio Embedding, Video Decoding, Video Scaling, Video Streaming
Interfaces/Ports
HDMI : Yes
Network (RJ-45) : Yes
Physical Characteristics
Depth : 5"
Depth (mm) : 127
Form Factor : Rack Mount, Surface Mount, Wall Mount
Height : 1.1"
Height (mm) : 26.67
Weight (Approximate) : 1.47 lb
Width : 7.9"
Width (mm) : 200.355
Video
Maximum Resolution : 1920 x 1200
