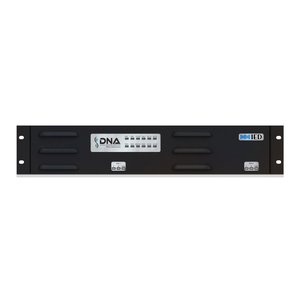

AtlasIED DNA2404DH DNA Series 4-Channel 2400W 100V Amplifier with Dante Network Audio
DNA2404DH
|AT-DNA2404DH
Shop All AtlasIED
AtlasIED DNA2404DH DNA Series 4-Channel 2400W 100V Amplifier with Dante Network Audio
DNA2404DH | AT-DNA2404DH
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The DNA2404DH amplifier is an integral part of the IED GLOBALCOM Communications System, allowing a few audio zones to be added where necessary when a full 16-zone T9160 amplifier frame is not required. The amplifier features Audinate's Dante digital audio input and four channels of 600W amplification. The DNA2404DH is controlled with network commands for selecting input routing and configuring EQ, delay and output levels. Amplifiers may be controlled by a stand-alone GLOBALCOM configuration utility or through the GLOBALCOM System Management Center.
Main Features
- Dual-redundant Ethernet ports
- 7-band parametric EQ and a high-pass and low-pass filter per channel
- Signal delay up to 40ms on each channel
- Continuous, Real-time Ambient Noise Analysis and Automatic Output Level Control
- Four 600W amplifier output channels
- LED indicators for power, audio signals and faults
- Built-in Automatic Loudspeaker Line Testing detects Ground Faults, Breaks and Changes in Loudspeaker Loads
- Fault reports and amplifier status available over Ethernet using standard SNMP protocol
- Two inputs for ambient noise sensors for each amplifier output channel
General Information
Name: AtlasIED DNA2404DH DNA Series 4-Channel 2400W 100V Amplifier with Dante Network Audio
Category: AtlasIED, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AT-DNA2404DH Brand Name AtlasIED Manufacturer Part Number DNA2404DH
