AtlasIED FAP63T-WEGS 6.5" Coaxial In-Ceiling Speaker, 32W 70V/100V
AtlasIED FAP63T-WEGS 6.5" Coaxial In-Ceiling Speaker, 32W 70V/100V
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 50 Hz-20 kHz
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 50 Hz-20 kHz
Sign In for Dealer Pricing
Become an ADI Customer- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 50 Hz-20 kHz

AtlasIED FAP63T-WEGS 6.5" Coaxial In-Ceiling Speaker, 32W 70V/100V
FAP63T-WEGS | AT-FAP63TWEG
Please sign in to view pricing and availability and to add to cart.
Accessories
Product Overview

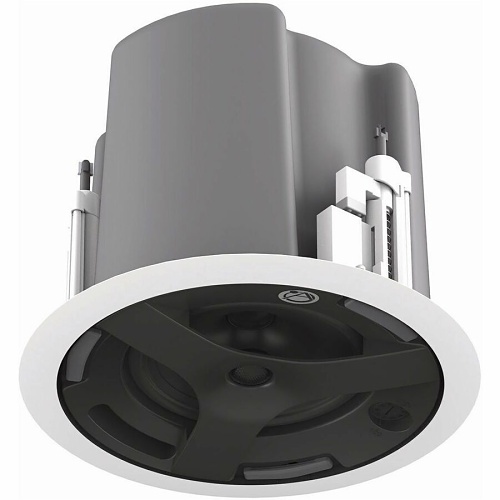

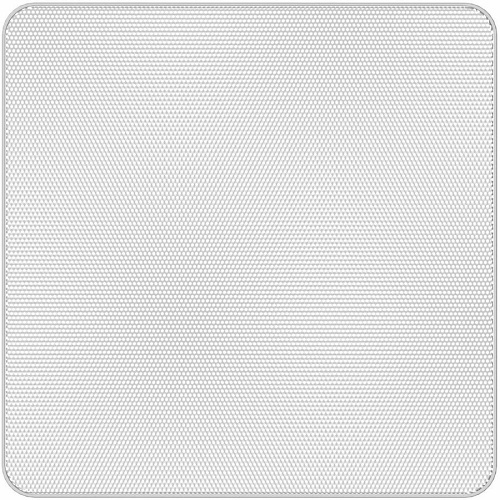

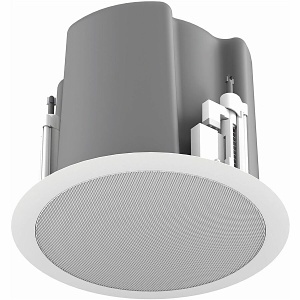

The AtlasIED FAP63T-WEGS Strategy III is a 6.5" coaxial speaker with next generation install technology and an edgeless square white grille. It is packed with new performance innovations at an affordable price point for every style of installation applications. If you require an in-ceiling speaker with excellent speech intelligibility, crisp music reproduction, quick installation, and wide audience coverage, look no further - this is the Right Choice . We achieved these new standards by building upon the current Strategy Series excellent reputation and by extensive market research to make it even better. The results are outstanding and will have you choosing them for all your projects going forward.
Retail stores, restaurants, recreational facilities, and even hotels, convention centers, and casinos have all changed their thinking on how an in-ceiling speaker should perform. For many years, good enough was a speaker that just played dull and lifeless sound. In today's world, good enough is no longer accepted because building owners want to increase their customer's experience by providing them the best of everything - including superb sound. The improved waveguide design provides wider coverage than previous models. The benefit is cost savings due to fewer speakers required, while still maintaining uniform sound throughout. To enhance our low-frequency response and provide deeper bass definition, we optimized the low frequency tuning port. Additionally, the FAP63T-WEGS is safety listed to both UL1480 and UL2043.
In-ceiling speakers are subjected to various climate and humidity environments. Competitive offerings use steel screws that can easily rust and fail due to humidity exposure. The FAP63T-WEGS provides corrosion-free, no-worry operation, since it has no metal screws holding the doglegs in position.
A new innovation is our Safety First Mounting System (SFMS). This technology prevents mounting tab damage during installation that other offerings suffer. The damage is caused by over torqueing during the installation process. This excessive torque can damage the mounting tabs that over time can increase the chance of mounting tab breakage and the speaker falling from the ceiling. The SFMS is the result of over 100 tested prototypes until the final design was approved. This patent pending technology uses t-handles that are integrated into the front of the speaker baffle to tighten the mounting tabs in materials as thin as sheet metal and up to 3/4".
Another important benefit is faster installation times. The SFMS also decreases installation time by up to 60%. Its mounting design is simple install steps without the need for any tools. A front mounted 70V tap selector allows installers to quickly adjust and set the 70V power taps. A removable 4-pole euro-style connector allows for easy pre-wiring and daisy chaining of additional speakers and subwoofers. The result is fewer labor costs and better profits.
Main Features
- Significantly enhance the sound from your devices and drives, get immersed in sound quality
- 8 Ohm impedance extracts maximum power so you will get more output from your speakers
- Hear every detail crisp and clear with a frequency response of 50 Hz-20 kHz
- Uproar the bass as loud as you want with 150 W RMS power without any blaring
- Delivers reliable sound with 20 kHz maximum frequency response
- 90 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
- IP21 Ingress Protection (IP) rating has a strong ability to handle ingress from solids and liquids in harsh environments to ensure maximum dependability
- In-ceiling form factor allows hassle-free and easy usage with increased efficiency
- Retail Store application/usage offers maximum reliability with dependable audio playback performance
General Information
Specifications
ADI Part Number AT-FAP63TWEG Brand Name AtlasIED Manufacturer AtlasIED Manufacturer Part Number FAP63T-WEGS Product Line Strategy III Product Model FAP63T-WEGS Product Name Strategy III FAP63T-WEGS Speaker Product Type Speaker
Impedance 8 ohms Sensitivity 90dB
Maximum Frequency Response 20 kHz Minimum Frequency Response 50Hz RMS Output Power 150W
Sound Emission 90 dB
Application/Usage Casino, Convention Center, Hotel, Music, Recreation, Restaurant, Retail Store Color White Enclosure Type Ported Form Factor In-ceiling
Limited Warranty 60-Month
