Product Overview
DESCRIPTION
The IsoFlare™ FC-6T is a wide bandwidth, high sensitivity ceiling loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.
The IsoFlare™ FC (in-ceiling) range is the new benchmark in point source technology for prestigious commercial environments. Leveraging years of engineering experience and the very latest in design & engineering techniques, IsoFlare™ brings performance and premium commercial audio to any space. FC models are available in a variety of sizes and with different installation methods to provide versatility for architects, designers, and installers.
Unlike most 'coax' offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance.
Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.
The FC-6T is designed for applications requiring a combination of premium sonic quality for music and speech reinforcement with exceptional reliability, in an architect/designer/installer friendly solution.
Low frequency enhancement can be augmented with the FC-8ST ceiling subwoofer
Two IsoFlare 6" variants are available to satisfy most installation scenarios:

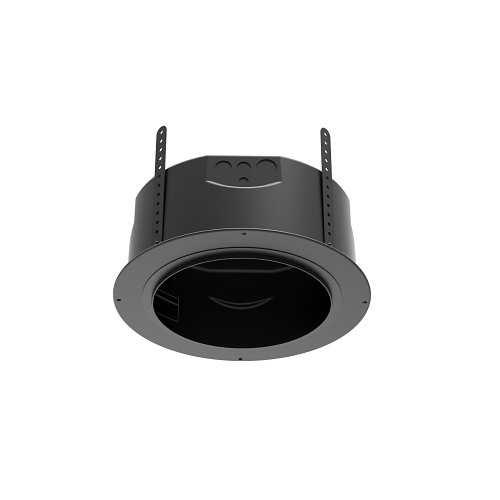

- IsoFlare FC-6T (Blind Mount) - supplied with an integral back can, C-Ring, and Tile Bridge.
- IsoFlare Pre-Installconsists of 2 components:
- FC-6DRV Pre-Install Driver- supplied without a back can.
- FC-6TPIC Pre-wired Back Can - for separate backcan installation.
Main Features
- Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation
- Edgeless grille - magnetically secured. No requirement for adapters to accommodate optional square grilles. Removable logo. Allows for a single step painting process if required. Optional black & white.
- Ferrofluid cooled titanium HF with neodymium magnet system
- Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate mid-range.
- Fluted Surround Technology - Conventional driver surround profiles can reflect energy back down the cone causing coloration
- Optimized smooth transition baffle (no sharp edges which cause diffraction)
- Full bandwidth very low insertion loss 30W 70/100V transformer
- High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors)
- Easy Access Tap Selector Switch
- Enhanced voicing presets available via AtlasIED Atmosphere platform
General Information
Specifications
-
ADI Part Number AT-FC6TPIC Brand Name AtlasIED Manufacturer AtlasIED Manufacturer Part Number FC6TPIC Product Line Premium Product Model FC-6T Product Name 6" Premium Ceiling Speaker (Blind Mount) Product Type Speaker
-
Application/Usage Airport, Bar, Boardroom, Casino, Commercial, Convention Center, Corporate, Courtroom, Cruise Ship, Educational Facility, Foreground, Hotel, House of worship, Lounge, Museum, Music/Paging System, Office, Retail, Shopping Mall Color Black, White Form Factor Blind Mount, Ceiling Mount, In-ceiling Material Ferrofluid, Titanium
-
Limited Warranty 60-Month
