AtlasIED IED1516LI-E 5400 Series 16 Input Logic Expansion Module for GLOBALCOM Systems
IED1516LI-E
|AT-IED1516LE
Shop All AtlasIED
AtlasIED IED1516LI-E 5400 Series 16 Input Logic Expansion Module for GLOBALCOM Systems
IED1516LI-E | AT-IED1516LE
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

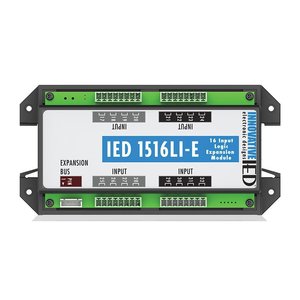

The 1516LI-E is a 16 input expansion module that connects directly to a 1516LI to bring its total input capacity up to 32 inputs that can be driven using dry contact closures or 0 to 50VDC logic signals. A green LED is provided above each input that illuminates when activated. The announcement controller is configured using the GLOBALCOM System Management Center software where logic inputs can be used to launch announcements, pre-recorded messages, events, or fault reports. The 1516LI-E receives its power through its connection to the 1516LI. The 1516LI-E connects to the 1516LI through the supplied 5-conductor expansion cable.
Main Features
- 16 optically-isolated inputs to interface with external equipment such as fire panels, security systems, etc
- Control and configuration using a web browser and GLOBALCOM System Management Center
- Settings storage in non-volatile memory
- For use with the IED1516LI to expand optically-isolated inputs to 32
- Full integration with the IED GLOBALCOM vACS
General Information
Name: AtlasIED IED1516LI-E 5400 Series 16 Input Logic Expansion Module for GLOBALCOM Systems
Category: AtlasIED, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AT-IED1516LE Brand Name AtlasIED Manufacturer Part Number IED1516LI-E
