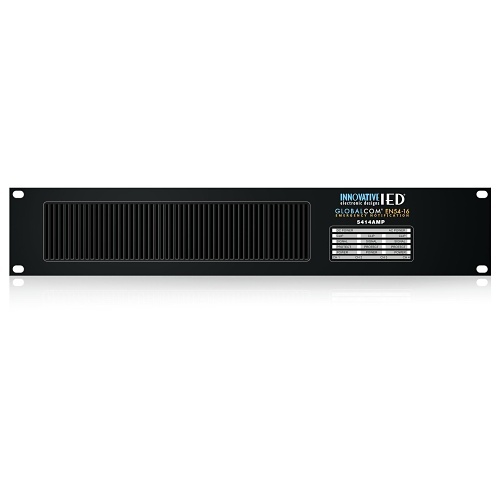

AtlasIED IED5414AMP Amplifier, GLOBALCOM EN54-16 100W 4-Channel Power Amplifier
IED5414AMP|AT-IED5414AM
AtlasIED IED5414AMP Amplifier, GLOBALCOM EN54-16 100W 4-Channel Power Amplifier
IED5414AMP|AT-IED5414AM
Key Features
- Class D Topology
- Discrete build of power amp modules
- 24VDC backup power capability
Key Features
- Class D Topology
- Discrete build of power amp modules
- 24VDC backup power capability
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Class D Topology
- Discrete build of power amp modules
- 24VDC backup power capability
AtlasIED
AtlasIED IED5414AMP Amplifier, GLOBALCOM EN54-16 100W 4-Channel Power Amplifier
IED5414AMP | AT-IED5414AM
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
5400 series amplifiers are an integral part of the IED GLOBALCOM EN54-16 Communications System. The IED5414AMP features four channels of 100 watt amplification. The amplifier is Class D switching mode which provides benefits such as - higher efficiency, increased reliability, improved performance, and lower operating cost. Switching mode operation combined with high voltage power devices make it possible to eliminate the heavy, costly, bulky transformers used by some amplifiers to drive 100V distributed speaker lines. The amplifier is internally monitored and limited to prevent over-current and over-temperature conditions, also protecting the amplifiers from harm due to short circuits on the speaker lines. The 100V floating direct outputs reduce more than just the weight - Installation and rack prices will drop significantly. The cost for energy consumption will average at roughly one third of any ordinary amplifier.
Main Features
- Class D Topology
- Discrete build of power amp modules
- 24VDC backup power capability
- High power, high efficiency Switched-Mode Power Supply (SMPS) with Power Factor Correction (PFC)
- External Remote Power On/Off Control
- Temperature Controlled, Variable Speed, Low Noise Fans
- High Tech Surface Mount Technology (SMT) Design
General Information
Name: AtlasIED IED5414AMP Amplifier, GLOBALCOM EN54-16 100W 4-Channel Power Amplifier
Category: AtlasIED, Pro AV, Commercial Audio, Pro Amplifiers
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AT-IED5414AM Brand Name AtlasIED Manufacturer Part Number IED5414AMP Product Name GLOBALCOM EN54-16 100W x 4-Channel Power Amplifier Product Type Amplifier Weight 30.86lb
-
Depth 17.87" Height 3.47" Width 17.2"
-
Input Voltage 220-240V
-
Limited Warranty 36-Month
