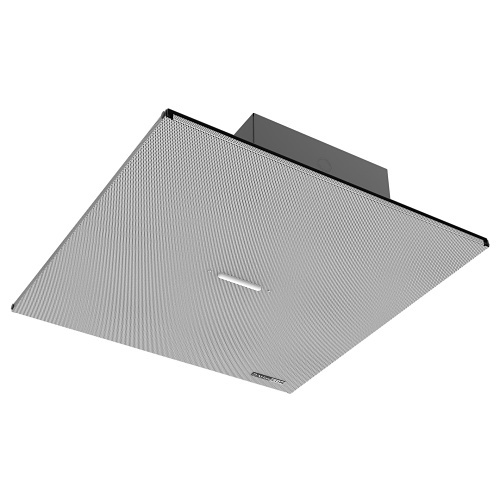

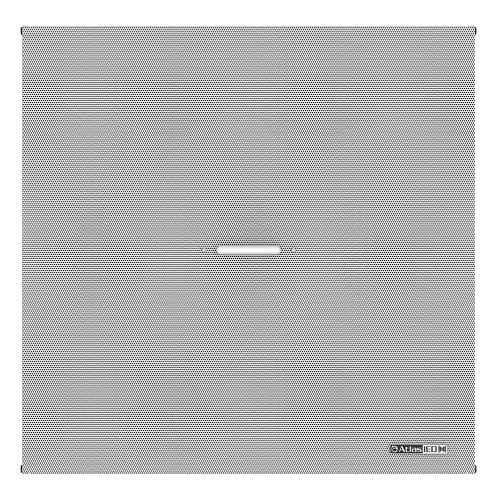

AtlasIED IP-22SYSMF PoE+ Indoor 2'x2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher
IP-22SYSMF
|AT-IP22SYSMF
Shop All AtlasIED
AtlasIED IP-22SYSMF PoE+ Indoor 2'x2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher
IP-22SYSMF | AT-IP22SYSMF
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
AtlasIED IP-22SYSMF 2’ x 2’ suspended ceiling mount IP speakers with talkback leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
Main Features
- Network Features
- Dynamic or Static IP Address
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q Tagging
- IEEE 802.11AT Compliant
- VoIP Standard Audio - G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
- Auto Registration - SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps' Applications or IEDNet+ for AtlasIED Applications
- Static Registration - HTTP GUI for Static Configuration
- Audio Features
- Integrated Amplifier 15W Total Power - Primary Speaker Output 8Ohm
General Information
Name: AtlasIED IP-22SYSMF PoE+ Indoor 2'x2' Suspended Ceiling Mount IP Speaker with Talkback Microphone and LED Flasher
Category: AtlasIED, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AT-IP22SYSMF Brand Name AtlasIED Manufacturer Part Number IP-22SYSMF
Maximum Frequency Response 15.5kHz Minimum Frequency Response 86.0000Hz
Color White Depth 4.89" Height 23.67" Width 11.94"
Power Source PoE (Power over Ethernet)
Mount Type Ceiling Mount
Limited Warranty 1-Year
Features 1 General Purpose Output (2A at 30 VDC), 2 General Purpose Inputs, Auto Registration- SLP for Singlewire Applications, DHCP Option 72 for Syn-Apps Applications or IEDNet+ for AtlasIED Applications, Aux Audio Line-In Balanced (2.8Vpp 10K), Aux Audio Line-Out Balanced (2.8Vpp 10K), Dynamic or Static IP Address, External Power Supply Option, IEEE 802.11AT Compliant, IEEE 802.1q Tagging, IEEE802.3 10/100Base-T Ethernet, Integrated Amplifier 15-Watt Total Power- Primary Speaker Output 8 ohm, Phone/Night Loud Ringer, Static Registration- HTTP GUI for Static Configuration, VoIP Standard Audio- G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
