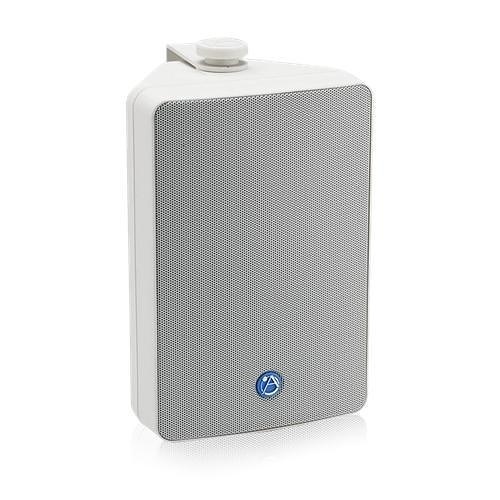

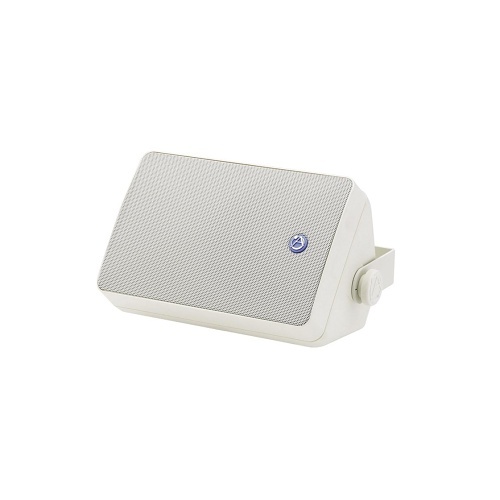

AtlasIED SM52TEN-WH EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30W 70V/100V Transformer, White
SM52TEN-WH|AT-SM52TENWH
AtlasIED SM52TEN-WH EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30W 70V/100V Transformer, White
SM52TEN-WH|AT-SM52TENWH
Key Features
- 1" Ferrofluid Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Key Features
- 1" Ferrofluid Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
Key Features
- 1" Ferrofluid Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
AtlasIED
AtlasIED SM52TEN-WH EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30W 70V/100V Transformer, White
SM52TEN-WH | AT-SM52TENWH
Please sign in to view pricing and availability and to add to cart.
Accessories
Non Plenum Audio Cables
ADI # RN-5002501
MODEL # RN-5002501
RN-5002501|RN-5002501
Sign In for Dealer Pricing
Non Plenum Audio Cables
ADI # RN-5001503
MODEL # RN-5001503
RN-5001503|RN-5001503
Sign In for Dealer Pricing
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Pro Amplifiers
ADI # 8P-EADN12D10
MODEL # 8P-EADN12D10
8P-EADN12D10|8P-EADN12D10
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, titanium dome high frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the AtlasIED TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage (90o H x 90oV). The high frequency section is symmetrical for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard protection circuit. The SM52TEN includes an internally mounted 60W 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 6ohms operation.
Main Features
- 1" Ferrofluid Cooled Dome Tweeter
- 100HR Salt Spray Test Per ASTM B117
- All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
- Atlas Sound POLYGUARD High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
- Atlas Sound TRX WAVEGUIDE - A Constant Directivity Style High Frequency Wave Guide System Provides Accurate, Even High Frequency Coverage
- Available in Black or White
- Color Matched Heavy-Duty Zinc Chromate Plated and Powder Coated "C" Bracket (Included)
- Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
- Five-Year Warranty
- Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
General Information
Name: AtlasIED SM52TEN-WH EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30W 70V/100V Transformer, White
Category: AtlasIED, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AT-SM52TENWH Brand Name AtlasIED Manufacturer Part Number SM52TEN-WH Product Name EN54-24 Certified 5.25" 2-Way All Weather Speaker with 30-Watt 70V/100V Transformer (White) Product Type Speaker
-
Maximum Frequency Response 20 kHz Minimum Frequency Response 93Hz
-
Color White Depth 5.875" Height 10.19" Width 6.88"
