Product Overview

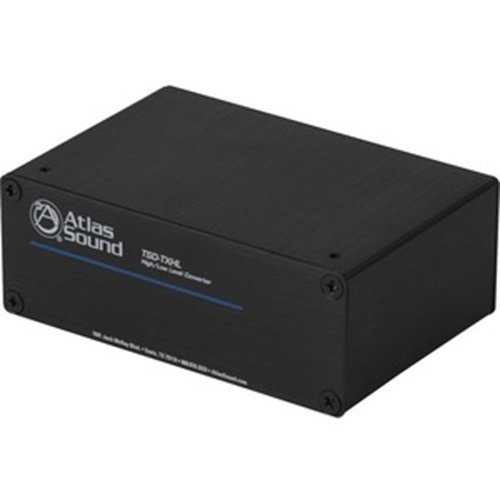

The TSD-TXHL is a high to low level converter designed to interface with 4?/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with Atlas Sound's CP and PA series amplifiers. Features Tap into 4Ω/25/70/100V Speaker Lines to Interface with Remote Amplifiers Input Gain Adjustment Switch Trim Level Control Isolated Transformer Removable I/O Connectors No External Power Required
Main Features
- Convert signal from one form to another with this signal converter
- Works on 25 kHz maximum frequency for efficient performance
General Information
Name: AtlasIED TSD-TXHL High/Low Level Converter
Category: AtlasIED, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code: 612079187881
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AT-TSDTXHL Brand Name AtlasIED Manufacturer AtlasIED Manufacturer Part Number TSD-TXHL Product Line Amps/Attenuator Product Model TSD-TXHL Product Name High / Low Level Converter Product Series TSD Product Type Signal Converter Weight 5.82oz
-
NDAA Compliant Yes TAA Compliant No
-
Color Black Depth 2.8" Height 1.5" Material Aluminum Width 4"
-
Maximum Frequency 25 kHz Minimum Frequency 40Hz
-
Package Contents - High / Low Level Converter
- Velcro Industrial Grade
- 2 x Brackets
- 2 x Cable Retainer
