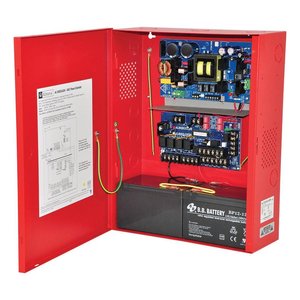

Altronix AL1002ADA220 NAC Power Supply, 2-Class or 4-Class Outputs, 24VDC at 10A
AL1002ADA220|AX-1002ADA22
Altronix AL1002ADA220 NAC Power Supply, 2-Class or 4-Class Outputs, 24VDC at 10A
AL1002ADA220|AX-1002ADA22
Altronix
Altronix AL1002ADA220 NAC Power Supply, 2-Class or 4-Class Outputs, 24VDC at 10A
AL1002ADA220Â |Â AX-1002ADA22
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
AL1002ADA220 is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.
Main Features
- 2-wire horn/strobe Sync mode allows audible notification appliances (horns) and visual notification appliances (strobes) to be silenced/deactivated at the same time.
- Signal circuit trouble memory (helps identify intermittent loop problems).
- Ground fault detection.
- Low battery and battery presence supervision
- Built-in charger for sealed lead acid or gel type battery backup
- Built-in charger for sealed lead acid or gel type battery backup
- 220VAC Input
- Lifetime Warranty
General Information
Name: Altronix AL1002ADA220 NAC Power Supply, 2-Class or 4-Class Outputs, 24VDC at 10A
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239943098
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-1002ADA22 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL1002ADA220 Product Model AL1002ADA220 Product Name NAC Power Supply, 2 Class A or 4 Class B Outputs, 24VDC @ 10A, 220VAC, Red BC400 Enclosure Product Type NAC Power Supply Â
-
Output Voltage 24V DC Â
-
Output Voltage (V) 24 Â
-
Depth 4.5" Height 15.5" Weight (Approximate) 12 lb Width 12.25" Â
-
Input Voltage 220V AC Input Voltage (V AC) 220 Output Current 10A Output Current (A) 10 Â
-
Environmental Certification RoHS Environmentally Friendly Yes Â
