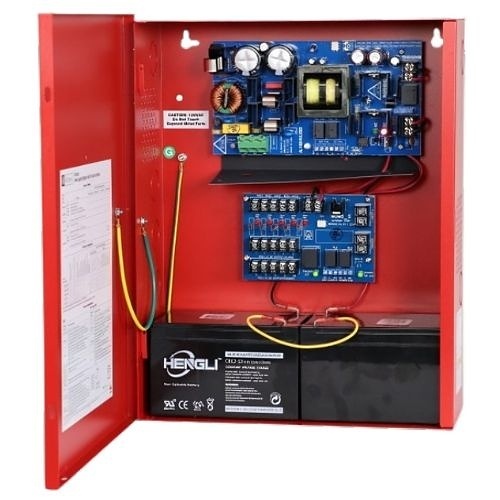

Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red
AL1024ULMR|AX-AL124ULMR
Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red
AL1024ULMR|AX-AL124ULMR
Altronix
Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red
AL1024ULMRÂ |Â AX-AL124ULMR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Model AL1024ULMR is specifically designed for use with access control systems and accessories. This unit converts a 115VAC 60Hz input into five (5) PTC protected Class 2 Rated power limited outputs rated @ 2 amp each, with an output current of 24VDC @ 10 amp supply current for Access Control application, 24VDC @ 8 amp supply current with 10 amp during alarm for Fire Alarm applications. Model AL1024ULM is a Grey Cabinet version of this product.
Main Features
- 5 PTC Class 2 Outputs
- Short circuit and thermal overload protection.
- Filtered and electronically regulated output.
- AC input and DC output LED indicators
- Power & input trigger LEDs
General Information
Name: Altronix AL1024ULMR Access Power Distribution Module, PTC Class Outputs, 24VDC at 10A, FAI, 115VAC, BC400 Enclosure, Red
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 782239936564
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-AL124ULMR Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL1024ULMR Product Model AL1024ULMR Product Name AL1024ULMR Proprietary Power Supply Product Type Proprietary Power Supply Weight (Approximate) (g) 4354.487 Â
-
Output Voltage 24V DC Â
-
Output Voltage (V DC) 12, 24 Â
-
Output Voltage (V) 12, 24 Â
-
Depth 3.3" Depth (mm) 82.55 Form Factor Wall Mount Height 13.5" Height (mm) 342.9 Weight (Approximate) 9.60 lb Width 13" Width (mm) 330.2 Â
-
Input Voltage 110V AC Input Voltage (V AC) 110 Output Current 10A Output Current (A) 10 Â
-
Amperage 10A Â
-
Limited Warranty Lifetime Â
-
Compatibility Mag LockElectric StrikeMagnetic Door HolderFire Alarm Control Panel Environmental Certification RoHS Environmentally Friendly Yes Â
