Altronix AL400XPD16CB220 Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC 4A, 220VAC, BC400 Enclosure
AL400XPD16CB220|AX-AL400B20
Altronix AL400XPD16CB220 Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC 4A, 220VAC, BC400 Enclosure
AL400XPD16CB220|AX-AL400B20
Key Features
- Available with 1, 4, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Built-in charger for sealed lead acid or gel type batteries
Key Features
- Available with 1, 4, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Built-in charger for sealed lead acid or gel type batteries
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Available with 1, 4, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Built-in charger for sealed lead acid or gel type batteries
Altronix
Altronix AL400XPD16CB220 Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC 4A, 220VAC, BC400 Enclosure
AL400XPD16CB220 | AX-AL400B20
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

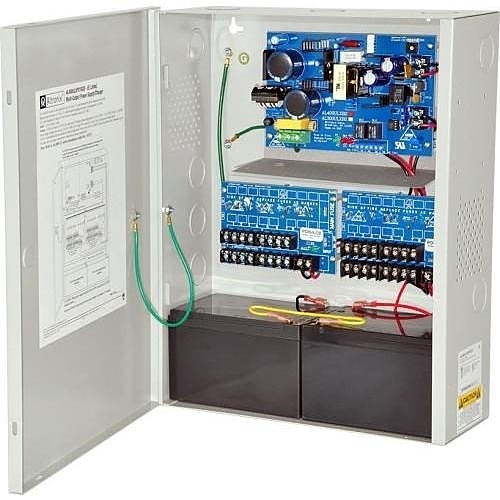

Introducing the Altronix AL400XPD16CB220 Power Supply Charger, a versatile solution designed to meet your power needs. This exceptional unit transforms a standard 220VAC input into sixteen reliable outputs, providing either 12VDC at 4A or 24VDC at 3A. With its robust BC400 enclosure, this power supply is perfect for various applications, ensuring safety and efficiency with its PTC outputs. Whether you're powering security systems or other devices, the AL400XPD16CB220 delivers consistent performance. Don't miss out on this essential addition to your setup—order yours today and experience the reliability of Altronix!
Main Features
- Available with 1, 4, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and DC output options
- CE European Conformity
General Information
Name: Altronix AL400XPD16CB220 Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC 4A, 220VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Management, UPS
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-AL400B20 Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number AL400XPD16CB220 Product Line X220 Product Model AL400XPD16CB220 Product Name Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC at 4A, 220VAC, BC400 Enclosure Product Series AL400X220 Product Type Power Supply Charger Weight 8.85lb
-
Output Voltage 12V DC, 24V DC
-
Maximum Operating Humidity 0.85
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 4.5" Height 15.5" Width 12.25"
-
Input Voltage 220V AC
-
Protection Type PTC Protection, Short Circuit Protection, Thermal Overload Protection
-
Limited Warranty Lifetime
