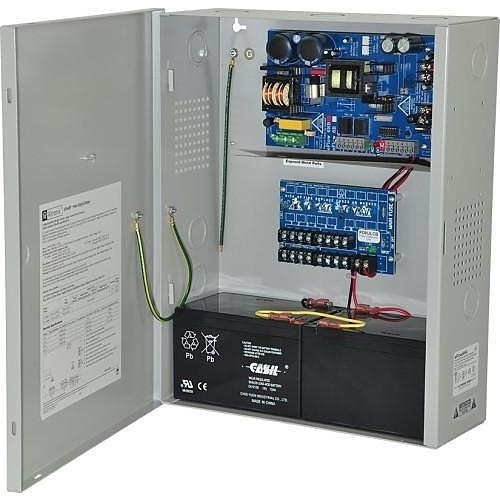

Altronix EFLOW6NX8DV Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC at 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW6NX8DV|AX-EFLOWNXV
Altronix EFLOW6NX8DV Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC at 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW6NX8DV|AX-EFLOWNXV
Key Features
- Available with 1, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Additional Aux. Output rated at 1A
Key Features
- Available with 1, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Additional Aux. Output rated at 1A
Key Features
- Available with 1, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Additional Aux. Output rated at 1A

Altronix
Altronix EFLOW6NX8DV Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC at 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
EFLOW6NX8DV | AX-EFLOWNXV
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Harnesses
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Introducing the Altronix EFLOW6NX8DV Power Supply Charger, designed to efficiently convert 220V AC into eight PTC protected outputs of 12V DC or 24V DC, delivering a robust 6A. This versatile unit features an unswitched auxiliary output and is equipped with essential safety mechanisms, including fire alarm disconnect, overvoltage protection, and low power disconnect to safeguard your standby batteries. With its compact BC400 enclosure, this power supply is perfect for various applications. Don't miss out on this reliable solution for your power needs—order the Altronix EFLOW6NX8DV today!
Main Features
- Available with 1, 8 or 16 outputs
- Fused or PTC ptotected outputs
- Additional Aux. Output rated at 1A
- Overvoltage protection
- Fire alarm disconnect
- Supervision AC Fail, Battery Fail and Battery Presence, Low power shutdow
- Built-in charger for sealed lead acid or gel type batteries
- Instantaneous transfer to stand-by batteries
- Short circuit and overload protection
- AC input and DC output LED indicators
General Information
Name: Altronix EFLOW6NX8DV Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC at 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number AX-EFLOWNXV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number EFLOW6NX8DV Product Line eFlow Product Model EFLOW6NX8DV Product Name Power Supply Charger, 8 PTC Class 2 Outputs, 12/24VDC at 6A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure Product Type Power Supply Charger Sector Access Control Weight 8.5lb
-
Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 4.5" Height 15.5" Width 12.25"
-
Input Voltage 220V AC Output Current 1A|2A|6A
-
Limited Warranty Lifetime
-
Environmental Certification RoHS Indoor/Outdoor Indoor
