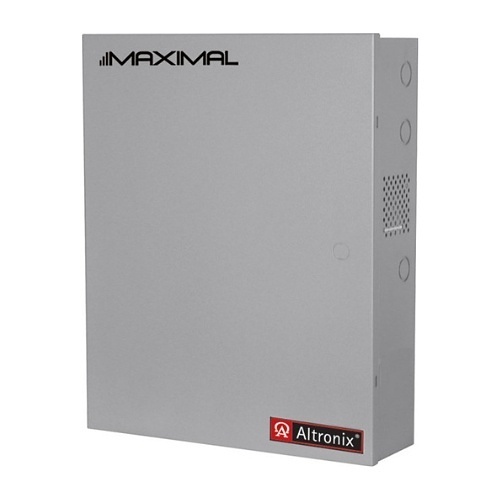

Altronix MAXIMAL55DV 12VDC 20A, 16 PTC Output, 220V Power Supply for Heavy-Duty Security Systems
MAXIMAL55DV
|AX-MAXIMA5DV
Shop All Altronix
Altronix MAXIMAL55DV 12VDC 20A, 16 PTC Output, 220V Power Supply for Heavy-Duty Security Systems
MAXIMAL55DV | AX-MAXIMA5DV
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the Altronix MAXIMAL55DV, a powerful solution for your access control needs. This unit efficiently converts 220VAC input into sixteen independently controlled 12VDC outputs, each protected by PTC. Designed for versatility, it supports various access control devices such as mag locks and electric strikes, operating seamlessly in both fail-safe and fail-secure modes. The FACP interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With its selectable fire alarm disconnect feature, you can customize the functionality for each output. Upgrade your security system today with the Altronix MAXIMAL55DV and experience unparalleled performance!
Main Features
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input, b) Polarity reversal input from FACP signaling circuit
- Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC)
General Information
Name: Altronix MAXIMAL55DV 12VDC 20A, 16 PTC Output, 220V Power Supply for Heavy-Duty Security Systems
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number AX-MAXIMA5DV Brand Name Altronix Manufacturer Altronix Corporation Manufacturer Part Number MAXIMAL55DV Product Line Maximal Product Model MAXIMAL55DV Product Name Access Power Controller w/ Power Supply/Chargers, 16 PTC Class 2 Relay Outputs, Dual 12VDC P/S @ 9.5A each, 220VAC, BC800 Enclosure Product Series MAXIMAL Product Type Access Power Controller Power Supplies Sector Access Control
Number of Doors 16 Output Voltage 12V DC
NDAA Compliant Yes
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
Depth 6.25" Height 26" Weight 43lb Width 19"
Input Voltage 220V AC
Limited Warranty Lifetime
Indoor/Outdoor Indoor Package Contents 1 x BC800 Enclosure, 26"H x 19"W x 6.25"D, Grey, 19 Gauge, Indoor, 2 x ACM8CB Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, Board, 2 x AL1012XB220 Power Supply Charger, Single Fused Output, 12VDC @ 10A, 220VAC, Board
