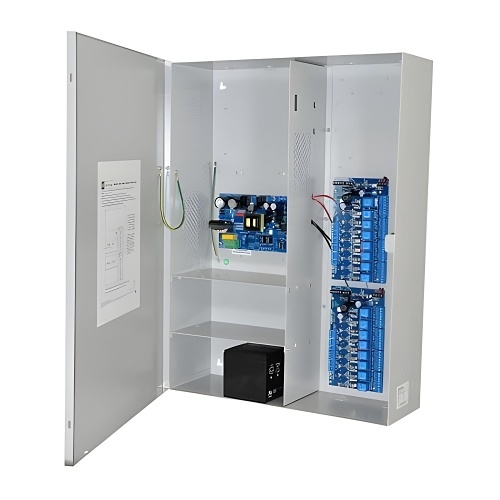

Image of AX-MAXIMAL5V
Shop all Altronix

Altronix MAXIMAL5V Access Power Controller with Power Supply / Charger, 16-Fused Relay Relay Outputs, 12VDC 9A, 220VAC, BC800 Enclosure

MAXIMAL5V|AX-MAXIMAL5V
Shop all Altronix

Altronix MAXIMAL5V Access Power Controller with Power Supply / Charger, 16-Fused Relay Relay Outputs, 12VDC 9A, 220VAC, BC800 Enclosure

MAXIMAL5V|AX-MAXIMAL5V
Key Features
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
  • Normally open (NO) or normally closed (NC) dry contact input
  • Polarity reversal input from FACP signaling circuit
Key Features
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
  • Normally open (NO) or normally closed (NC) dry contact input
  • Polarity reversal input from FACP signaling circuit

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
  • Normally open (NO) or normally closed (NC) dry contact input
  • Polarity reversal input from FACP signaling circuit
Altronix

Altronix MAXIMAL5V Access Power Controller with Power Supply / Charger, 16-Fused Relay Relay Outputs, 12VDC 9A, 220VAC, BC800 Enclosure

MAXIMAL5V | AX-MAXIMAL5V

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Introducing the Altronix MAXIMAL5V Access Power Controller, a reliable solution for managing power to your access control systems and accessories. This innovative device transforms a 220V AC input into sixteen independently controlled 12V DC outputs, each protected by fuses. Designed for versatility, it supports various access control hardware, including mag locks and electric strikes. The FACP Interface allows for emergency egress and alarm monitoring, ensuring safety and efficiency. With its selectable fire alarm disconnect feature, you can customize the outputs to meet your needs. Enhance your security setup today with the Altronix MAXIMAL5V!

Main Features

  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the sixteen (16) outputs
  • Normally open (NO) or normally closed (NC) dry contact input
  • Polarity reversal input from FACP signaling circuit
  • Alarm output relay indicates that FACP input is triggered (form "C" contact rated at 1A 28V DC)
  • AC fail supervision (form "C" contacts)
  • Notification trigger is selectable for 30 seconds (factory set) or 6 hours
  • Low battery and battery presence supervision (form "C" contact)
  • Capacity: 12AH/12V DC (4 within enclosure); 40AH/65AH (requires separate enclosure)
  • Type Sealed lead acid or gel type
  • Failover: Upon AC loss, instantaneous

General Information

Name: Altronix MAXIMAL5V Access Power Controller with Power Supply / Charger, 16-Fused Relay Relay Outputs, 12VDC 9A, 220VAC, BC800 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239949878
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
