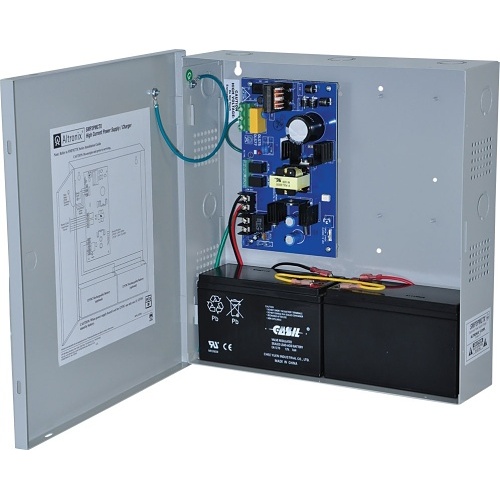

Altronix SMP3PMCTX Supervised Power Supply/Charger, Single Output, 12/24VDC at 2.5A, BC300 Enclosure

Brand: Altronix
ADI #:AX-SMP3PMCTX Model #: SMP3PMCTX  Name: Altronix SMP3PMCTX Supervised Power Supply/Charger, Single Output, 12/24VDC at 2.5A, BC300 Enclosure
  • AC input and DC output LED indicators.
  • Short circuit and thermal overload protection.
  • Filtered and electronically regulated outputs.
Altronix SMP3PMCTX Proprietary Power Supply

Product Overview

Altronix SMP3CTX series power supply/chargers convert a 115VAC/230VAC, 50/60Hz input into a single, four (4), eight (8) or sixteen (16) fuse/PTC protected outputs. Outputs are selectable for 12VDC or 24VDC with a total of 2.5A max.

Main Features
  • Available with 1, 4, 8 or 16 outputs.
  • Fused or PTC ptotected outputs.
  • Supervision (where applicable, see Chart below): AC Fail/ Low Battery.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Instantaneous transfer to stand-by batteries.
  • Short circuit and overload protection.
  • AC input and DC output options.
  • CE European Conformity.
  • Lifetime Warranty / Made in the U.S.A.

General Information

Name : Altronix SMP3PMCTX Supervised Power Supply/Charger, Single Output, 12/24VDC at 2.5A, BC300 Enclosure , Altronix
Category : Power Supplies
UPC Code : 782239930463
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : AX-SMP3PMCTX
Brand Name : Altronix
Manufacturer : Altronix Corporation
Manufacturer Part Number : SMP3PMCTX
Product Model : SMP3PMCTX
Product Name : SMP3PMCTX Proprietary Power Supply
Product Type : Proprietary Power Supply
Weight (Approximate) (g) : 3220.506

Technical Information

Output Voltage : 12 V DC @ 2.5 A, 24 V DC @ 2.5 A

Physical Characteristics

Depth : 3.3"
Depth (mm) : 82.55
Form Factor : Wall Mount
Height : 13.5"
Height (mm) : 342.9
Weight (Approximate) : 7.10 lb
Width : 13"
Width (mm) : 330.2

Power Description

Input Current : 350 mA @ 220V, 650 mA @ 110V
Input Voltage : 110 V AC, 220 V AC
Input Voltage (V AC) : 110, 220
Input Voltage Range : 115 V AC - 230 V AC
Number of +12V Rails : 1

Product Information

Length : 14.8"
Length (mm) : 374.65
Protection Type : Short Circuit, Thermal Overload

Warranty

Limited Warranty : Lifetime

Miscellaneous

Environmental Certification : RoHS
Environmentally Friendly : Yes
