Overview
Specifications
Documents
Product Overview

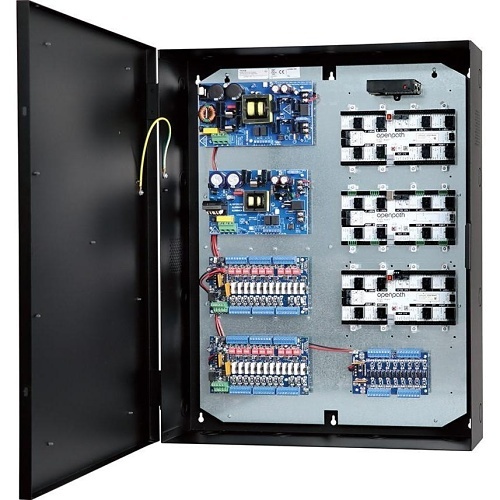

Introducing the Altronix T2PHK7524D Access Power Controller, a comprehensive solution designed for efficient access control management. This kit features a Trove2 enclosure and a TCV2 Openpath/Altronix backplane, providing reliable power with one 24VDC at 10A and one 12VDC at 10A power supply/charger. It includes two PTC protected output dual input access control modules and a sixteen output dual input PTC power distribution module, accommodating up to sixteen doors. The Trove design enhances board layout and wire management, significantly reducing installation time and labor costs. Upgrade your security system today with this versatile power controller!
Main Features
- Includes Trove2 enclosure for efficient organization
- 24VDC and 12VDC power supply/charger included
- Supports up to 16 doors in a single enclosure
- PTC protected output for safety
- Simplifies board layout and wire management
- Reduces installation time and labor costs
- Battery charging capacity up to 65AH
- Operating temperature from 0°C to 49°C (32°F to 120°F)
- High relative humidity tolerance of 85%
- Compact design with efficient power distribution
General Information
Name: Altronix T2PHK7524D Access Power Controller
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239971886
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-T2PH7524D Brand Name Altronix Manufacturer Part Number T2PHK7524D Product Line Trove Product Model T2PHK7524D Product Name 24-Door Altronix/Openpath Access and Power Integration Kit with Fused Outputs - Trove2CV2 with AL1024ULXB2, AL1012ULXB2, (2) ACMS12CB, PDS16CB. Trove2 Series Product Series Trove Kit Product Type Power Integration Weight 49.8lb
-
Number of Doors 24 Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-120°F Storage Temperature (T-T) -4-158°F
-
Depth 6.5" Height 27.25" Width 21.5"
-
Input Voltage 120V AC
-
Country of Origin US Indoor/Outdoor Indoor
