Key Features
- Includes Trove3 enclosure and backplanes
- 24VDC and 12VDC power supply/chargers
- Two 8-output PTC access power controllers
Key Features
- Includes Trove3 enclosure and backplanes
- 24VDC and 12VDC power supply/chargers
- Two 8-output PTC access power controllers
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Includes Trove3 enclosure and backplanes
- 24VDC and 12VDC power supply/chargers
- Two 8-output PTC access power controllers

Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

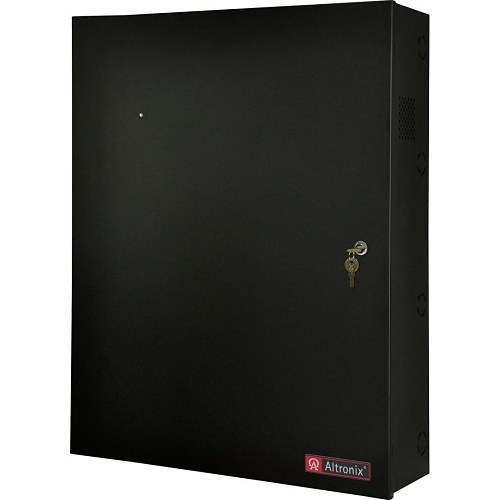

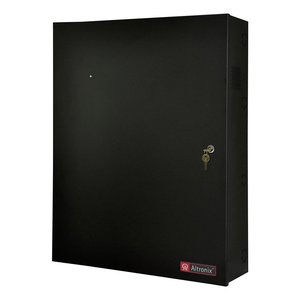

Introducing the Altronix T3HWK7516D Access Power Controller, a comprehensive solution designed for efficient power management. This kit includes a Trove3 enclosure, a THW3 backplane, and a THWD2 door backplane, featuring a robust power supply with one 24VDC at 10A and one 12VDC at 10A. It also comes with two 8-output PTC access power controllers and a power distribution module. The THW3 backplane supports up to six Honeywell 4200 series or WIN-PAK series boards, accommodating up to sixteen doors. Simplify your installation process and enhance your security system with this reliable power controller. Don't miss out—order yours today!
Main Features
- Includes Trove3 enclosure and backplanes
- 24VDC and 12VDC power supply/chargers
- Two 8-output PTC access power controllers
- 8-output PTC power distribution module
- Rocker switch bracket with two switches
- Accommodates up to 16 doors in one enclosure
- Supports Honeywell 4200 and WIN-PAK series boards
- Simplifies board layout and wire management
- Reduces installation time and labor costs
- Operating temperature from 0°C to 50°C
General Information
Name: Altronix T3HWK7516D Access Power Controller
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239968633
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number AX-T3HW7516D Brand Name Altronix Manufacturer Part Number T3HWK7516D Product Line Trove Product Model T3HWK7516D Product Name 16-Door Altronix/Honeywell Access and Power Integration Kit - Trove3HW3 with THWD2, AL1024ULXB2, AL1012ULXB, (2) ACM8CB, PD8ULCB, RSB2 Product Series Trove Kit Product Type Power Integration Weight 85lb
-
Number of Doors 16 Output Voltage 12V DC, 24V DC
-
NDAA Compliant Yes
-
Operating Temperature (T-T) 32-122°F Storage Temperature (T-T) -4-158°F
-
Depth 7.06" Height 36.12" Width 30.12"
-
Input Voltage 120V AC
-
Certifications UL 1481, UL 294 Country of Origin US Indoor/Outdoor Indoor
