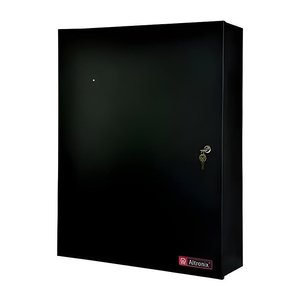

Image of AX-T3SK75F1M
Shop all Altronix

Altronix T3SK75F16MM 16-Door Access and Power Integration Kit, Minuteman Version, Includes Trove3SH3 with eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2

T3SK75F16MM|AX-T3SK75F1M
Shop all Altronix

Altronix T3SK75F16MM 16-Door Access and Power Integration Kit, Minuteman Version, Includes Trove3SH3 with eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2

T3SK75F16MM|AX-T3SK75F1M

Sign In for Dealer Pricing

Become an ADI Customer
Image of AX-T3SK75F1M
Altronix

Altronix T3SK75F16MM 16-Door Access and Power Integration Kit, Minuteman Version, Includes Trove3SH3 with eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2

T3SK75F16MM | AX-T3SK75F1M

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Altronix T3SK75F16 kit consists of Trove3 enclosure and TSH3 Software House/Altronix backplane with 24V DC at 10A and 12V DC at 10A power supply/chargers, two eight (8) fuse protected output access control modules and eight (8) fuse protected output power distribution module. This kit also accommodates various combinations of Software House boards for up to sixteen (16) doors in a single enclosure. Trove simplifies board layout and wire management, reduces installation time and labor costs.

Main Features

  • Accommodates the following Software House controllers iStar Ultra GCM and iStar Ultra ACM boards or iSTAR Pro GCM and iSTAR ACM SE/PRO ACM boards, as well as I8, R8, and I8-CSI boards
  • Convenient knockout configuration Single 2.415" diameter knockout located top of enclosure, Two (2) double knockouts (1.948" and 1.5"), Thirteen (13) double knockouts (1.115" and 1.362")
  • 16AWG Galvanized steel backplane simplifies board layout and wire management
  • Filtered and electronically regulated outputs
  • Thermal and short circuit protection with auto reset
  • AC Input and DC output LED indicators
  • Supervision AC Fail, Low Battery and Battery Presence, Low power shutdown
  • Built-in charger for sealed lead acid or gel type batteries
  • Instantaneous transfer to stand-by batteries

General Information

Name: Altronix T3SK75F16MM 16-Door Access and Power Integration Kit, Minuteman Version, Includes Trove3SH3 with eFlow104NB, eFlow102NB, (2) ACM8, PD8UL, RSB2
Category: Altronix, Access Control, Batteries & Power Supplies, Power Products, Power Supplies & Boards, Power Supplies, Power Supplies
UPC Code: 782239957514
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Installation Instructions
