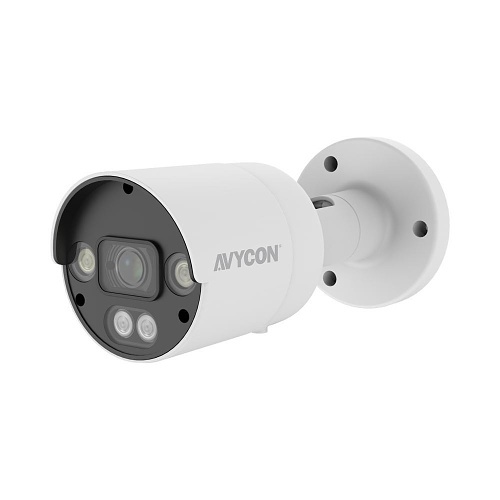

AVYCON AVC-TCB21F28 Diversity Series 2MP InfiniteColor Bullet Camera, 2.8mm Fixed Lens
AVC-TCB21F28|BX-CTCB21F28
AVYCON AVC-TCB21F28 Diversity Series 2MP InfiniteColor Bullet Camera, 2.8mm Fixed Lens
AVC-TCB21F28|BX-CTCB21F28
Key Features
- 2MP (1920x1080) at 25fps
- Max. Resolution 1920x1080
- True Day and Night ICR
Key Features
- 2MP (1920x1080) at 25fps
- Max. Resolution 1920x1080
- True Day and Night ICR
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 2MP (1920x1080) at 25fps
- Max. Resolution 1920x1080
- True Day and Night ICR

AVYCON
AVYCON AVC-TCB21F28 Diversity Series 2MP InfiniteColor Bullet Camera, 2.8mm Fixed Lens
AVC-TCB21F28 | BX-CTCB21F28
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
Sign In for Dealer Pricing
Video Surveillance Monitors
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 2MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog). With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. This camera also includes AoC(Audio over Coaxial) up to 22.9ft and a 2.8mm fixed Lens with Autofocus capabilities that can be controlled through the DVR. Also standard with this series is Digital NR, AGC, DWDR, and BLC capabilities along with IP67 outdoor rating.
Main Features
- 2MP (1920x1080) at 25fps
- Max. Resolution 1920x1080
- True Day and Night ICR
- Up to 98 ft. IR Illumination
- Fixed 2.8mm Lens
- 2D DNR, Digital WDR, HLC, BLC
- AoC (Audio over Coaxial) up to 22.9ft
- Supports Remote Access with Windows, macOS, iOS and Android
- Operating Temperature -22°F - 122°F
- DC12V
General Information
Name: AVYCON AVC-TCB21F28 Diversity Series 2MP InfiniteColor Bullet Camera, 2.8mm Fixed Lens
Category: AVYCON, Video Surveillance, HDoC Cameras, Bullet Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number BX-CTCB21F28 Brand Name AVYCON Manufacturer AVYCON Manufacturer Part Number AVC-TCB21F28 Product Line AVC Product Model AVC-TCB21F28 Product Name Avycon AVC-TCB21F28 2 Megapixel Network IR Outdoor Bullet Camera with 2.8mm Lens Product Type Network Camera
-
Effective Camera Resolution 2MP Field of View Diagonal: 131°, Horizontal: 109.7°, Vertical: 57.6° Lens Type Fixed Maximum Frame Rate 15fps Minimum Focal Length 2.8mm Night Vision Yes
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP67
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -22°F
-
Minimum Illumination 0.05 lux
-
Lens Included Yes Maximum Focal Length 2.8 mm
-
Color Black, White Depth 7.39" Durability Dustproof, Waterproof, Weather Resistant
-
Input Voltage 12V DC
-
Mount Type Ceiling Mount, Wall Mount
-
Features 2D DNR, Digital WDR, HLC, BLC, 2MP (1920 x 1080) at 25fps, AoC (Audio over Coaxial) up to 22.9ft, DC12V, Fixed 2.8mm Lens, Max. Resolution 1920 x 1080, Operating Temperature -22°F - 122°F, Supports Remote Access with Windows, macOS, iOS and Android, True Day and Night ICR, Up to 98 ft. IR Illumination Indoor/Outdoor Outdoor
