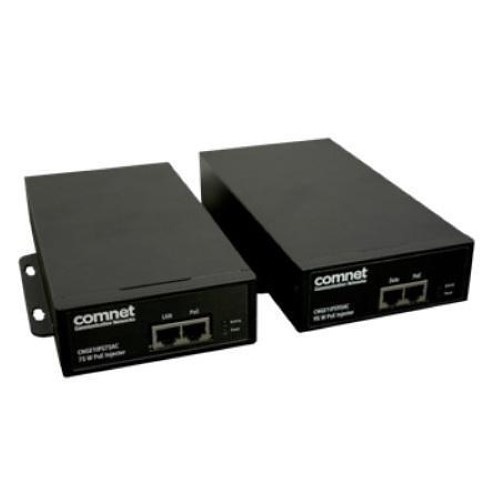

ComNet CNGE1IPS95AC Industrial Gigabit PoE Midspan Injector for 10/100/1000TX, 95W
CNGE1IPS95AC|C4-C1IPS95AC
ComNet CNGE1IPS95AC Industrial Gigabit PoE Midspan Injector for 10/100/1000TX, 95W
CNGE1IPS95AC|C4-C1IPS95AC

ComNet
ComNet CNGE1IPS95AC Industrial Gigabit PoE Midspan Injector for 10/100/1000TX, 95W
CNGE1IPS95AC | C4-C1IPS95AC
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The ComNet CNGE1IPSXXAC series consists of industrial Power over Ethernet midspan injection modules that inject 50-57 VDC at to any network cable. Operating power and 10/100/1000TX Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. The CNGE1IPS95 is fully compliant with the requirements of IEEE 802.3at for Power Sourcing Equipment (PSE), and features auto detection of powered devices (PDs). Transmission distances of up to 328 feet (100 meters) are supported, and this injector supplies operating power for PDs drawing a maximum of 75 and/or 95 watts (model dependent). Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CNGE1IPSXXAC series offers a true plug-and-play product requiring no user configuration or other set-up.
General Information
Name: ComNet CNGE1IPS95AC Industrial Gigabit PoE Midspan Injector for 10/100/1000TX, 95W
Category: ComNet, Video Surveillance, Data Comm & Networking, Networking Devices, PoE Devices, PoE Injectors, PoE Injectors
UPC Code: 845770016390
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number C4-C1IPS95AC Brand Name ComNet Manufacturer Part Number CNGE1IPS95AC
-
Operating Relative Humidity (H-H) 10-90% Operating Temperature (T-T) 104-167°F
-
Networking Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
-
Input Voltage 50-57V DC
-
Mount Type Wall Mount
-
Environmental Certification CE, FCC, UL Environmentally Friendly Yes
