Overview
Specifications
Documents
Product Overview
The ComNet FDX60 series data transceivers provide point-to-point transmission of simplex or duplex EIA RS232/RS422/RS485 (2W/4W) data signals over one or two optical fibers. The transceivers are transparent to data encoding allowing for broad-range compatibility. Models within this series are available for use with multimode or single mode optical fiber. The FDX60 has a built-in fiber link test feature that allows for the testing of the fiber.
Features
- Meets EIA RS232C/D and RS422/RS485 (2 or 4-wire) specifications
- Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
- NTCIP compatible
- Fiberlink Fiber Link Tester
- Wide optical dynamic range: optical attenuators are never required
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- LED status indicators confirm operating status
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- ComFit form factor allows the unit to be Interchangeable between stand-alone or rack mount use, or it can be DIN-rail mounted with optional DINBKT1 or DINBKT4 mounting kit.
- Hot-swappable rack modules
- FDX60-M has a small footprint and is designed for surface mounting
- Lifetime Warranty
APPLICATIONS
- Access Control Systems
- Building Automation and Environmental Control Systems
- Computer/Data Equipment
- Fire and Alarm Systems
- Traffic Signal Control Equipment
Main Features
- Point-to-Point simplex/duplex data transmission
- Supports RS232/RS422/RS485 data signals
- Compatible with multimode/single mode fiber
- Built-in fiber link test feature
- Robust Design for harsh environments
- NTCIP Compatible
- Wide optical dynamic range
- Complies with NEMA TS-1/TS-2 standards
- Voltage transient protection
- Plug-and-play installation
General Information

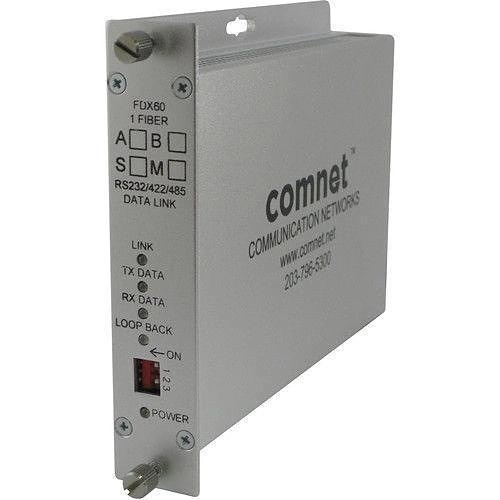

Name: ComNet FDX60M1B 2/4 Wire Data Transceiver, Bi-Directional
Category: ComNet, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 845770005035
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number C4-FDX60M1B Brand Name ComNet Manufacturer ACRE Manufacturer Part Number FDX60M1B Product Model FDX60M1B Product Name RS232/RS422/RS485 Data Transceiver Product Series FDX60(M,S)[-M] Product Type Transceiver/Media Converter
-
Media Type Supported Optical Fiber Power Consumption 2W
-
Number of Ports 1 Number of ST Ports 1
-
ADI Part Number Replaces C4-FDX70EBM1 Model Number Replaces FDX70EBM1
-
Depth 6.1" Height 1.1" Width 5.3"
-
Power Source Power Supply
-
Limited Warranty Lifetime
-
Country of Origin US Environmental Certification RoHS, WEEE Environmentally Friendly Yes Package Contents - RS232/RS422/RS485 Data Transceiver
- Power Supply
