ComNet FVT1031M1 1-Channel Multimode Digitally Encoded Video Transmitter / Data Transceiver, 1-Fiber
FVT1031M1
|C4-FVT1031M1
Shop All ComNet
ComNet FVT1031M1 1-Channel Multimode Digitally Encoded Video Transmitter / Data Transceiver, 1-Fiber
FVT1031M1 | C4-FVT1031M1
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

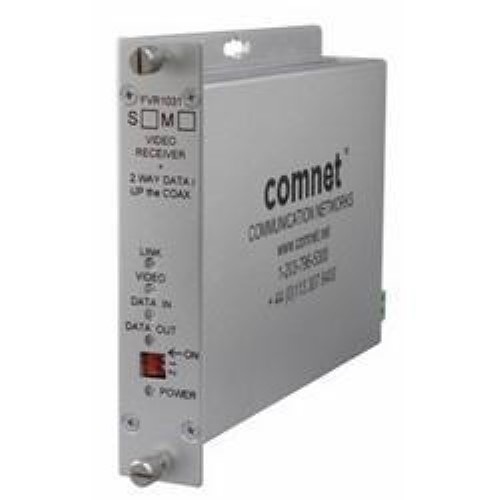

The ComNet FVT/FVR1031 series video transmitter/receiver and data transceiver supports simultaneous transmission of short-haul quality 10-bit digital video, bi-directional data and up-the-coax data over one multimode or single-mode optical fiber. The m odule is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols as well as up-the-coax data. The FVT/FVR1031 allows the user to choose bi-directional da ta or up-the-coax data through a switch on the unit. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators confirm equipment operating status. Packaged in the e xclusive ComNet ComFit housing, these units may be either wall or rack-mounted.
Main Features
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- May be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate
- Interchangeable between stand-alone or rack mount use – comFit
- Hot-Swappable Modules
- Distances up to 43 mi (69 km)
- Automatic resettable fuses on all power lines
- 10-bit digitally encoded video transmission
- Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Supports Pelco and Panasonic "UP-THE-COAX" control signals for a distance up to 1500' (590m)
General Information
Name: ComNet FVT1031M1 1-Channel Multimode Digitally Encoded Video Transmitter / Data Transceiver, 1-Fiber
Category: ComNet, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 845770003017
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number C4-FVT1031M1 Brand Name Comnet Manufacturer Part Number FVT1031M1
Power Consumption 2.0000W
Limited Warranty Lifetime Warranty
Environmental Certification CE, FCC, RoHS Environmentally Friendly Yes
