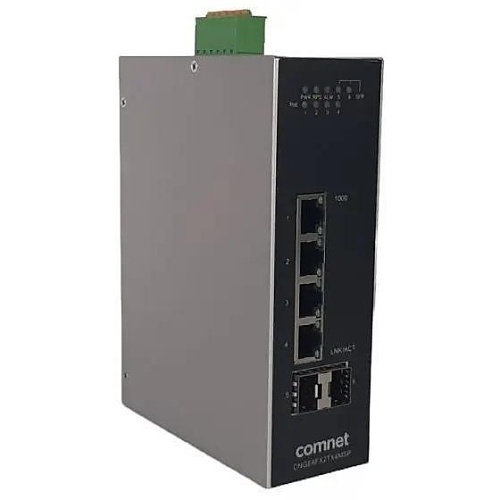

ComNet CNGE6FX2TX4MSP Hardened 2FX SFP 100/1000Mbps FX + 4-Port 10/100Mbps TX Ports Managed Switch
CNGE6FX2TX4MSP|C4-FX2TX4MSP
ComNet CNGE6FX2TX4MSP Hardened 2FX SFP 100/1000Mbps FX + 4-Port 10/100Mbps TX Ports Managed Switch
CNGE6FX2TX4MSP|C4-FX2TX4MSP
Key Features
- Robust Performance and protection
- High-power budget for PoE network devices
- Innovative PoE+ for powered devices
Key Features
- Robust Performance and protection
- High-power budget for PoE network devices
- Innovative PoE+ for powered devices
Key Features
- Robust Performance and protection
- High-power budget for PoE network devices
- Innovative PoE+ for powered devices
ComNet
ComNet CNGE6FX2TX4MSP Hardened 2FX SFP 100/1000Mbps FX + 4-Port 10/100Mbps TX Ports Managed Switch
CNGE6FX2TX4MSP | C4-FX2TX4MSP
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
CNGE6FX2TX4MSP managed industrial switch is a Power Source Equipment (PSE) device engineered with rugged hardware to meet the high reliability requirements of Industrial or Outdoor PoE applications. Built in a well-protected IP30 aluminium housing, the switch withstands wide operating temperatures ranging from -40C to 75C and operates consistently even in harsh industrial environments. The CNGE6FX2TX4MSP supports QoS, IGMP snooping, SFP DDMI, PoE and other device management features to fulfill the needs of high performance managed surveillance networks. PoE+ function on 4-10/100/1000 copper ports of the CNGE6FX2TX4MSP complies with IEEE 802.3at standards and allows them to supply up to 30W per port for network attached powered devices such as WLAN Access Points, VoIP phones and IP surveillance cameras. Two gigabit fiber slots can be configured as dual fiber ring ports to quickly recover network failures and provide an easy way to establish redundant gigabit network. Thus, CNGE6FX2TX4MSP ensures a reliable and highly available managed industrial networks while delivering all the benefits of PoE power.
Main Features
- Robust Performance and protection
- High-power budget for PoE network devices
- Innovative PoE+ for powered devices
General Information
Name: ComNet CNGE6FX2TX4MSP Hardened 2FX SFP 100/1000Mbps FX + 4-Port 10/100Mbps TX Ports Managed Switch
Category: ComNet, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code:
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number C4-FX2TX4MSP Brand Name ComNet Manufacturer Part Number CNGE6FX2TX4MSP Product Name Comnet CNGE6FX2TX4MSP Hardened 2 FX SFP 100/1000Mbps FX + 4 Port 10/100Mbps TX Ports Managed Switch Product Type Switch Weight 1.6lb
-
Network Switch Type Managed Power Consumption 10W
-
Number of SFP+ Slots 2
-
Total Number of Network Ports 4
-
Networking Standards IEEE 802.1ab, IEEE 802.1d, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
-
Depth 4.72" Height 6.3" Material Aluminum Width 1.97"
-
Input Voltage 48-57V DC PoE Budget 120W
-
Mount Type DIN Rail Mount
