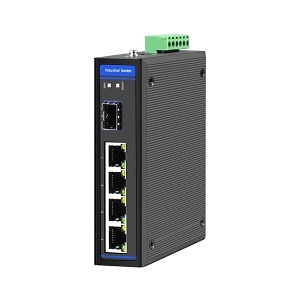

Cleerline SSF-1x4-RUGGED Industrial Gigabit Switch 4x 10/100/1000Base-Tx to 1x 1000Base-X SFP
SSF-1x4-RUGGED
|CC-CN4RUGGED
Shop all Cleerline
Cleerline SSF-1x4-RUGGED Industrial Gigabit Switch 4x 10/100/1000Base-Tx to 1x 1000Base-X SFP
SSF-1x4-RUGGED | CC-CN4RUGGED
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Cleerline™ SSF-1x4-RUGGED is a 1 x SFP to 4 x RJ45 Gigabit Ethernet switch designed for industrial applications, offering reliable performance in extreme environments. This non-managed switch supports 10/100/1000Base-TX to 1000Base-X connections and operates within a temperature range of -40 to 75°C. Its rugged IP40-rated metal casing and DIN rail bracket make it ideal for mechanically or electrically extreme environments. The switch features a store and forward switching mechanism, auto-negotiation, auto MDI/MDI-X on every RJ45 port and supports IEEE 802.1Q Tag VLAN pass-through.
The SSF-1x4-RUGGED switch includes strong surge protection (4kV ~ 8kV) per port and is compliant with various IEC and EN standards for industrial-grade equipment. It offers redundant DC power inputs (10-60V) for enhanced reliability and features reversed power polarity protection. With dimensions of 88 x 35 x 120mm and weighing 0.38kg, it is compact and easy to install via DIN rail or wall mounting. The switch supports a back-plane switching fabric of 10 Gbps, a MAC address table of 4K, and a packet buffer size of 1MB, making it an efficient solution for reliable data transmission in industrial settings.
External power supply required (SSF-DIN-48V60W-PS)
Main Features
- DC power input block 10-60V
- Extreme operating temperature: -40 to 75°C
- Rugged IP40 rated metal casing, DIN rail bracket
- Store and Forward switching mechanism
- Reversed power polarity protection
- Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
- 6kV surge protection per port
- IEEE 802.1Q Tag VLAN pass-through
- Redundant DC power inputs
General Information
Name: Cleerline SSF-1x4-RUGGED Industrial Gigabit Switch 4x 10/100/1000Base-Tx to 1x 1000Base-X SFP
Category: Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 672975372477
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number CC-CN4RUGGED Brand Name Cleerline Manufacturer Part Number CN-SSF-1X4-RUGGED Product Type Switch
